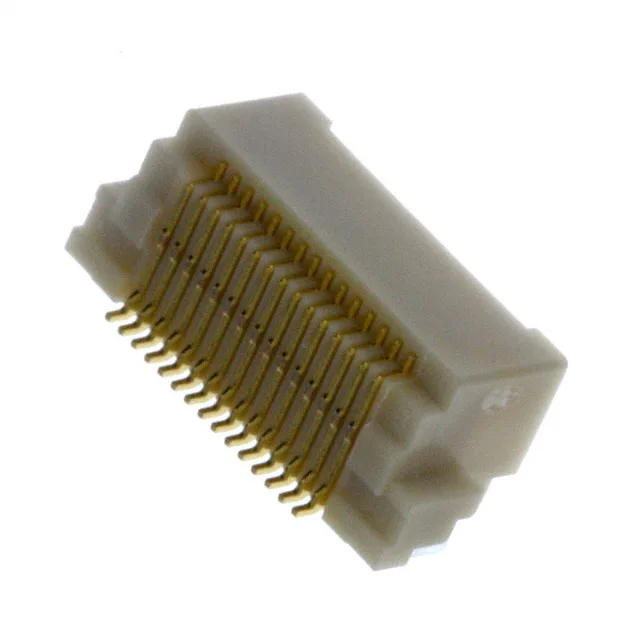

JST JMD 30PS-JMDSS-G-1-TF

MPN30PS-JMDSS-G-1-TF
Active

JST JMD series, 30-position plug, 0.020" (0.50mm) pitch, dual-row, right-angle surface-mount, gold-plated outer shroud contacts, solder retention

$1.5000Ref. price · indicative, final on quote
30PS-JMDSS-G-1-TF datasheet
StockIn Stock (30)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

30PS-JMDSS-G-1-TF Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount, Right Angle
Connector typePlug, Outer Shroud Contacts
Height above board0.189\" (4.80mm)
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions30

Product details

30-Position Right-Angle SMT Plug for Dense Signal Interconnects

The JST 30PS-JMDSS-G-1-TF is a 30-circuit plug from the JMD series, built with outer shroud contacts on a tight 0.020" (0.50mm) pitch across two rows. The solder retention tabs anchor the plug to the PCB during reflow, resisting shear forces from cable strain or handling during downstream assembly.

RoHS Status and Regulatory Note

This specific order code (30PS-JMDSS-G-1-TF) is listed as RoHS non-compliant. For RoHS-required builds, the LF variants in the JMD series — such as 20PS-JMDSS-G-1-TF(LF)(SN) or 40PS-JMDSS-G-1-TF(LF)(SN) — carry the lead-free suffix and are the compliance path. Confirm your bill of material's regulatory jurisdiction before committing.

This is the plug half of the JMD board-to-board interconnect system. It mates with the matching JMD receptacle (female side, outer shroud contacts). Termination is surface-mount soldering — the plug is supplied in Tape & Reel (TR) or Cut Tape (CT) packaging, compatible with standard pick-and-place reflow assembly.

Frequently asked questions

Is 30PS-JMDSS-G-1-TF RoHS compliant?

No — this order code is listed as RoHS non-compliant. For RoHS-compliant builds, use the LF-suffixed variants in the JMD series such as 20PS-JMDSS-G-1-TF(LF)(SN) or 40PS-JMDSS-G-1-TF(LF)(SN).

What is the pitch and number of positions of 30PS-JMDSS-G-1-TF?

Pitch is 0.020" (0.50mm) with 30 positions arranged in two rows.
