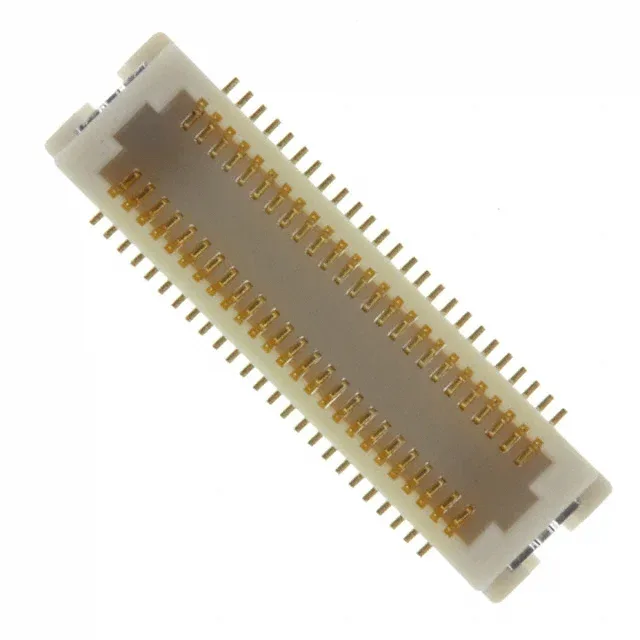

JST JMD 50P6.0-JMDSS-G-1-TF Plug, 50 Pos, 0.50 mm Pitch

MPN50P6.0-JMDSS-G-1-TF
Active

JST JMD series plug, outer shroud contacts, 50 positions, 2 rows, 0.020" (0.50 mm) pitch, gold contact finish, surface mount, solder retention, 6 mm mated stack height.

$2.1700Ref. price · indicative, final on quote
50P6.0-JMDSS-G-1-TF datasheet
StockIn Stock (24)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

50P6.0-JMDSS-G-1-TF Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount
Connector typePlug, Outer Shroud Contacts
Mated stacking heights6mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions50

Product details

Board-Stacking Interconnect for Dense Signal Routing

The JST JMD series 50P6.0-JMDSS-G-1-TF is a 50-position plug with outer shroud contacts, designed for parallel board-to-board stacking. The 6 mm mated stack height sets the spacing between the two PCBs — a fixed dimension that drives enclosure and component clearance decisions.

The 50-position count is the primary BOM match criterion. The 40-position sibling 40P-JMDSS-G-1-TF(LF)(SN) shares the same 0.50 mm pitch and 6 mm stack height but carries 10 fewer circuits — a difference that changes the board footprint and the number of signal lines the connector handles. For a 50-circuit harness or bus, this plug is the correct count; the 40-position variant fits a lower-density layout.

SMT Termination with Solder Retention

Surface-mount termination suits automated pick-and-place assembly.

Frequently asked questions

What is the mated stacking height of 50P6.0-JMDSS-G-1-TF?

The mated stack height is 6 mm, which sets the spacing between the two parallel PCBs in a board-to-board stacking configuration.
