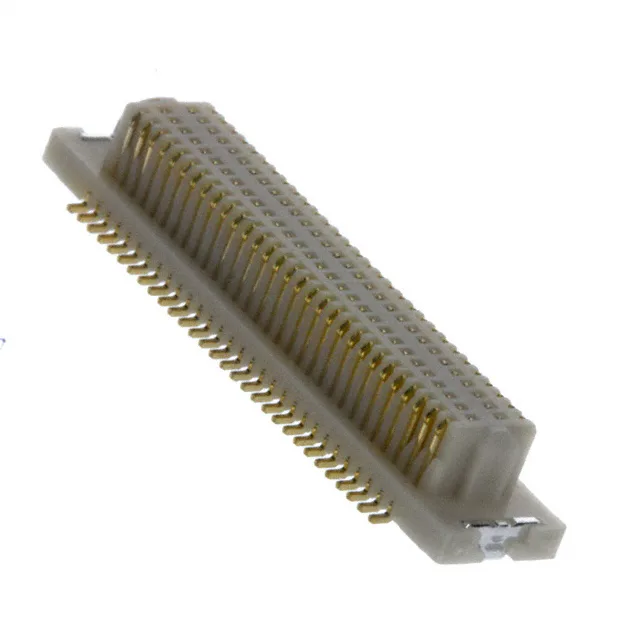

JST JMD 60R-JMDSS-G-1-TF

MPN60R-JMDSS-G-1-TF
Active

JST JMD series receptacle, center strip contacts, 60 positions, dual-row, 0.020" (0.50mm) pitch, surface mount, gold contact finish, solder retention, tape and reel.

$2.7800Ref. price · indicative, final on quote
60R-JMDSS-G-1-TF datasheet
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

60R-JMDSS-G-1-TF Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.122\" (3.10mm)
Mated stacking heights4.5mm, 5mm, 6mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions60

Product details

Board-Stacking Receptacle for High-Density Interconnects

With a 0.020" (0.50mm) pitch across two rows, it packs 60 circuits into a compact footprint — the tight pitch demands careful board layout for trace routing between pads.

Stack Height Options and Board Layout Fit

Three mated stacking heights are specified: 4.5mm, 5mm, and 6mm. This range gives the board designer flexibility to match the z-height budget of the enclosure while keeping the same receptacle footprint. The 0.122" (3.10mm) height above board of the receptacle itself sets the lower bound — the mating plug determines the final stack.

RoHS Status and Compliance Planning

This part is listed as RoHS non-compliant. For BOMs requiring RoHS conformance, the alternate MPN 60R-JMDSS-G-1-TF(S)(LF)(SN) carries the same 60-position, 0.50mm pitch, dual-row layout with gold contacts and an active lifecycle — a direct functional equivalent for compliance-sensitive builds. Confirm the (S)(LF)(SN) suffix matches your solder process requirements before substituting.
