JST 70R-JMDSS-G-1-TF Receptacle, 70 Position, 0.50mm Pitch

MPN70R-JMDSS-G-1-TF
Active

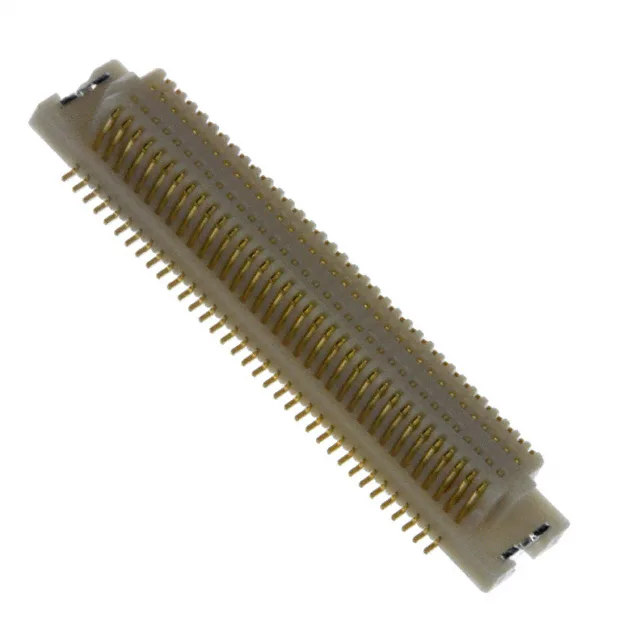

JST JMD series receptacle, center strip contacts, 70 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount, gold contact finish, solder retention feature, 0.122" (3.10mm) height above board.

$2.8300Ref. price · indicative, final on quote
70R-JMDSS-G-1-TF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

70R-JMDSS-G-1-TF Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.122\" (3.10mm)
Mated stacking heights4.5mm, 5mm, 6mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions70

Product details

70-Position SMT Receptacle for Dense Mezzanine Stacks

The JST 70R-JMDSS-G-1-TF is a 70-position receptacle from the JMD series, designed for board-to-board mezzanine interconnects where routing density and a low stack height matter. The SMT footprint and solder retention features keep it anchored through reflow, and the 0.122" (3.10mm) height above board lets it fit into tight z-height budgets. Typical applications include compact consumer electronics, portable devices, and internal board stacking where every millimeter counts.

Stack Height Options and Board Layout Fit

Compared to the 80-position sibling (80R-JMDSS-G-1-TF), the 70-position version saves 10 signals worth of routing area at the same pitch and stack height — a straight position-count decision for the BOM.

Frequently asked questions

Where can I buy 70R-JMDSS-G-1-TF and how do I get a price?

Submit a request for quote to confirm current availability and pricing for your BOM quantity.

Is 70R-JMDSS-G-1-TF RoHS compliant?

Yes, the JST 70R-JMDSS-G-1-TF is listed as RoHS Compliant.

What is the mated stacking height for 70R-JMDSS-G-1-TF?

The 70R-JMDSS-G-1-TF supports mated stacking heights of 4.5mm, 5mm, and 6mm, depending on the mating header selected.
