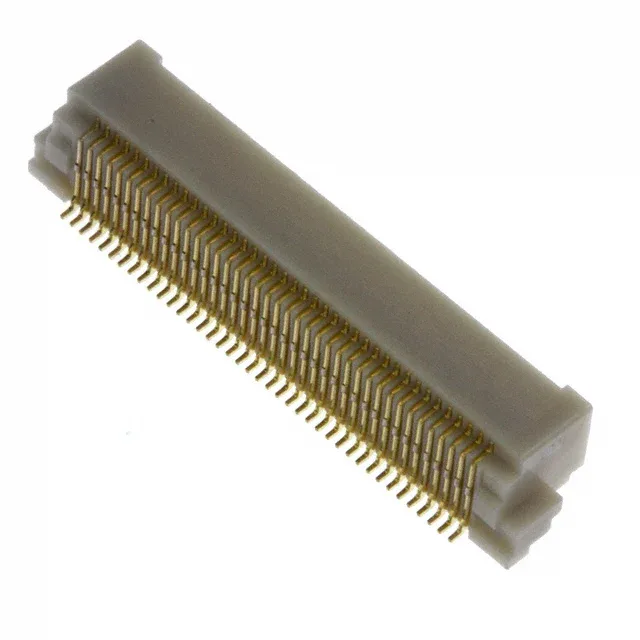

JST JMD 80PS-JMDSS-G-1-TF, 80-Position 0.50mm Pitch Plug

MPN80PS-JMDSS-G-1-TF
Active

JST JMD series plug, outer shroud contacts, 80 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount right angle, gold contact finish, solder retention.

$3.6500Ref. price · indicative, final on quote
80PS-JMDSS-G-1-TF datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

80PS-JMDSS-G-1-TF Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount, Right Angle
Connector typePlug, Outer Shroud Contacts
Height above board0.189\" (4.80mm)
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions80

Product details

80-Position JMD Plug for High-Density Board-to-Board Links

The JST 80PS-JMDSS-G-1-TF is an 80-position plug from the JMD series, designed as a compact, high-density board-to-board interconnect.

Pitch, Height, and Board Fit

The connector stands 0.189" (4.80 mm) above the board after reflow, so the mating receptacle must have a matching profile to hit the intended stack height. Solder retention pads on the SMT package anchor the body to the board, which helps when the assembly sees vibration or thermal cycling.

Frequently asked questions

Is 80PS-JMDSS-G-1-TF RoHS compliant?

No, the 80PS-JMDSS-G-1-TF is listed as RoHS non-compliant. Buyers in regulated markets should verify exemption eligibility or look for a lead-free alternative in the JMD series.

What is the pitch of 80PS-JMDSS-G-1-TF?

The pitch is 0.020" (0.50mm), which is a fine-pitch spacing typical for high-density signal interconnects. The PCB footprint must match this exactly.

What is the mating connector for 80PS-JMDSS-G-1-TF?

This plug mates with a JMD series receptacle that has a matching 0.50 mm pitch and a 4.80 mm stack height. The exact receptacle order code depends on the position count and plating required for the application.

Where can I buy 80PS-JMDSS-G-1-TF available via RFQ confirmation?

This part is sourced to order against your BOM quantity.
