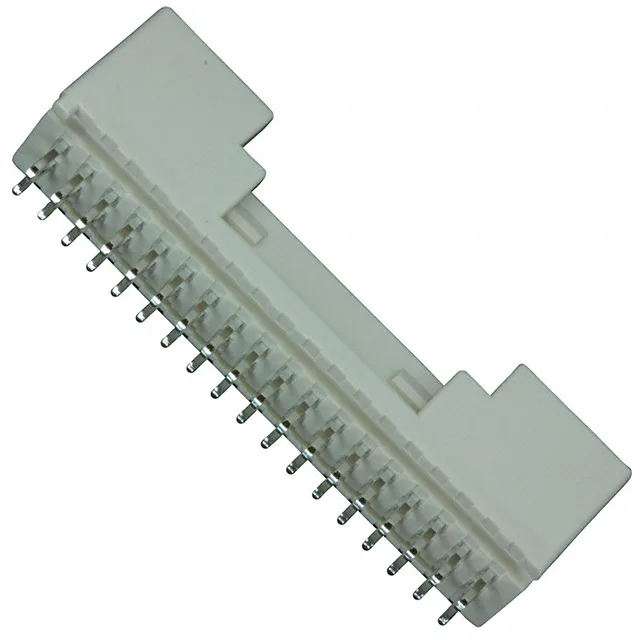

B36B-PUDSS-1 — JST product photo
JST

B36B-PUDSS-1 JST 36-Pin 2mm Header – Active, Through-Hole

MPNB36B-PUDSS-1
Active

JST PUD series, 36-position, 2-row, 2.00mm pitch, shrouded – 4 wall header, through-hole solder, male pin, tin-plated contacts, 3 A, 250 V, latch holder, UL94 V-0, natural, tray.

$1.4000Ref. price · indicative, final on quote
B36B-PUDSS-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B36B-PUDSS-1 Technical Specifications
ParameterValue
SeriesPUD
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.378\" (9.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights11mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions36
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

36 positions on 2.00mm pitch – the PUD series workhorse

The B36B-PUDSS-1 is a 36-position, 2-row, 2.00mm pitch shrouded header from JST's PUD series, designed for board-to-cable/wire connections. The glass-filled PA66 housing carries UL94 V-0 flammability rating.

Through-hole solder with board guide

A board guide feature assists alignment during PCB insertion, reducing pin stubbing. The natural insulation color and 0.378" (9.60mm) insulation height leave room for the latch mechanism. Mated stacking height is 11mm, set by the PUD series receptacle housing. The 2.00mm row spacing matches the pitch, keeping the footprint symmetric.

Frequently asked questions

What crimp housing mates with B36B-PUDSS-1?

The B36B-PUDSS-1 mates with JST PUD series crimp receptacle housings of the same 2.00mm pitch and 36-position count. The latch holder on the header locks with the corresponding latch on the receptacle.
