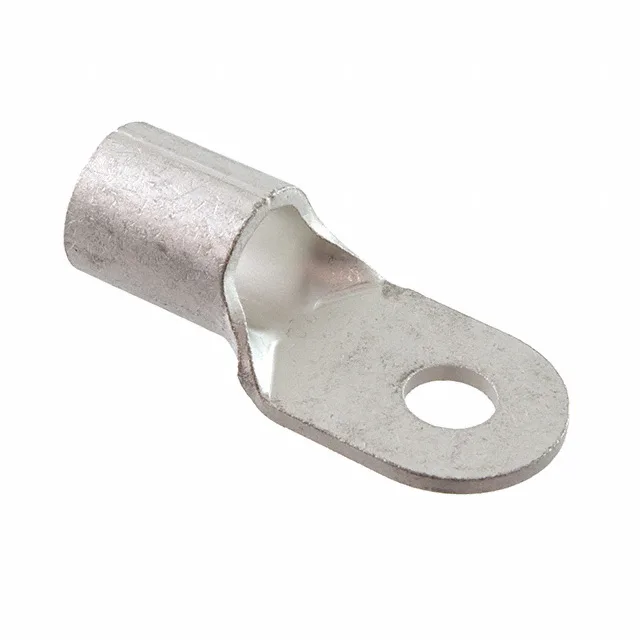

R60-8 — JST product photo
JST

JST R60-8 Ring Terminal, 1/0 AWG, 5/16 Stud, Non-Insulated

MPNR60-8
Active

JST R60-8 ring terminal, 1/0 AWG, 5/16 stud, D-shaped, non-insulated, brazed seam, 0.079" (2.01mm) thickness, crimp termination, free hanging, bulk.

$1.2200Ref. price · indicative, final on quote
R60-8 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

R60-8 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Terminal typeD-Shaped
Wire gauge1/0 AWG
Width - outer edges0.866\" (22.00mm)
PackageBulk
FeaturesBrazed Seam
Thickness0.079\" (2.01mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)5/16 Stud
Length - overall1.957\" (49.70mm)

Product details

Heavy-gauge ring terminal for 1/0 AWG power connections

The JST R60-8 is a non-insulated D-shaped ring terminal accepting 1/0 AWG wire, terminated by crimp and sized for a 5/16 stud. The brazed seam construction and 0.079" (2.01mm) thickness suit high-current power distribution where the barrel must withstand crimp deformation without splitting.

Stud size and wire gauge ladder within the R series

The R60-8 carries 1/0 AWG on a 5/16 stud, while the R22-10 handles 4 AWG on a 3/8 stud and the R14-5 takes 6 AWG on a 10 stud — all share the same non-insulated, brazed-seam, crimp construction in bulk packaging.

Frequently asked questions

Can R60-8 replace R22-10 in an existing panel?

No — R60-8 accepts 1/0 AWG on a 5/16 stud, while R22-10 accepts 4 AWG on a 3/8 stud; the stud size and wire gauge differ, so the terminal does not drop in without rewiring and changing the stud.
