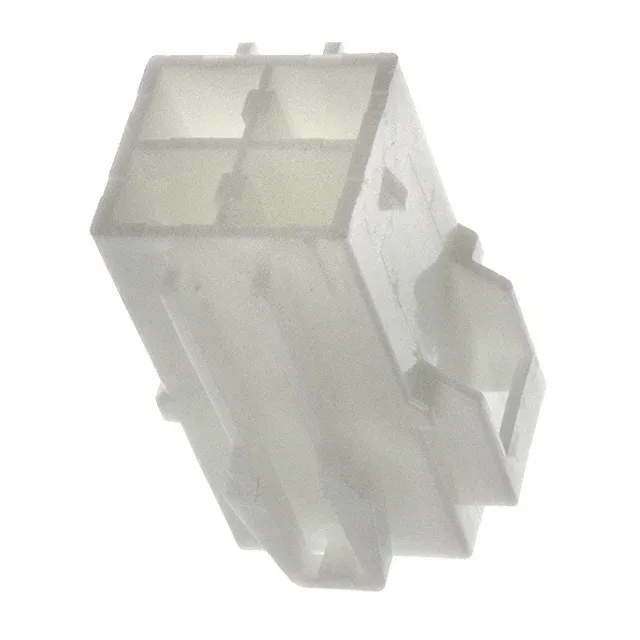

VLR-04V — JST product photo
JST

JST VLR-04V VL Series Receptacle Housing, 4 Pos, 6.20 mm

MPNVLR-04V
Active

JST VL series receptacle housing, VLR-04V, 4 positions, 2 rows, 0.244" (6.20mm) pitch, free-hanging, latch holder, white PA66, crimp termination, contacts not included.

$0.4900Ref. price · indicative, final on quote
VLR-04V datasheet
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

VLR-04V Technical Specifications
ParameterValue
SeriesVL
GenderMale Pin
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-25°C ~ 90°C
ColorWhite
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.244\" (6.20mm)
PackageBulk
Rows2
Contact terminationCrimp
Positions4

Product details

6.20 mm Pitch, 4-Position Receptacle Housing for In-Line Harnesses

Latch Holder Retention and Polarization

The housing is polarized by the keying geometry of the latch and the asymmetric shroud around the cavities; a reversed insertion is physically blocked. The latch holder also acts as a secondary lock for the crimp terminals once they are inserted into the cavities.

The crimp termination style gives a gas-tight connection when the wire is properly crimped with the correct tooling. For a full harness assembly, order the VLR-04V housing plus the required number of VL series male crimp contacts and the mating header (the VLP series).

Frequently asked questions

Where can I buy the JST VLR-04V connector housing?

The VLR-04V is available to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.

What crimp contacts fit the VLR-04V?

The VLR-04V accepts male pin crimp terminals from the JST VL series. The contacts are not included with the housing and must be ordered separately.

Is the VLR-04V polarized or keyed?

Yes, the VLR-04V is polarized. The latch holder and the asymmetric shroud around the cavities prevent reverse insertion — the mating header will only engage in one orientation.
