32-position, 2.00 mm pitch header for industrial I/O boards

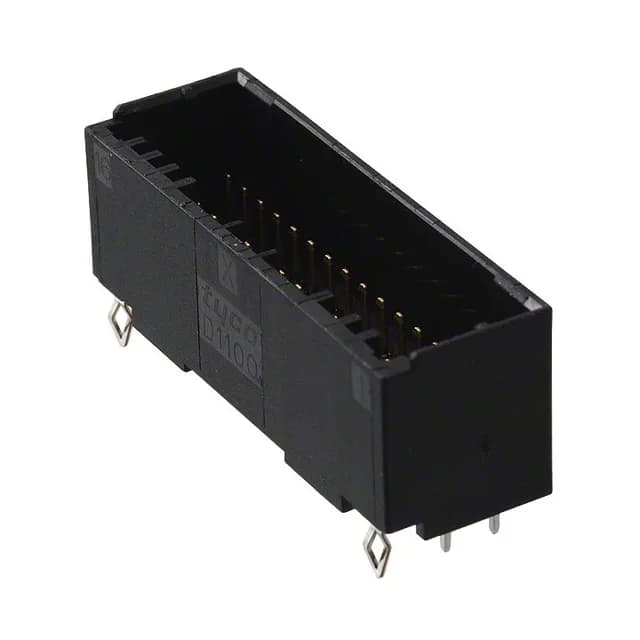

The 1-1827872-6 is a 32-position, 2-row vertical header from TE's Dynamic D-1100 series. The gold contact finish supports repeated mating cycles in field-serviceable equipment — the tin tail keeps solder wetting reliable through wave or hand solder.
Board lock and shrouding for vibration-prone panels
A board lock on each end anchors the header to the PCB during reflow and resists shear force from cable strain after assembly. The full 4-wall shroud protects the pins from damage during mating and prevents misalignment with the receptacle. The detent lock on the housing provides an audible click when the mating connector seats — no secondary latch needed for moderate vibration environments.
