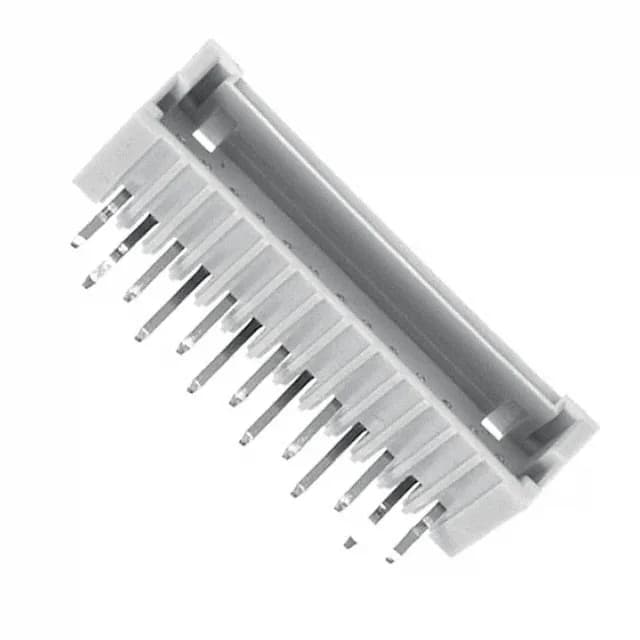

The 1-292206-3: This is a 13-position single-row header on 1.50 mm pitch, right-angle through-hole, from TE's Mini CT series. The 4-wall shrouding protects the square tin-plated male pins during cable mating, and the detent lock gives a positive hold against vibration.
Right-angle mounting saves board height
The kinked solder tails (3.00 mm post length) provide mechanical retention during wave soldering. Compared to the 2.00 mm pitch 11-position sibling (1-292164-1), this part packs two more circuits into a tighter footprint — a meaningful difference when board real estate is the constraint.
Active production, sourced per order
Lifecycle status is Active. RoHS3 compliant.
