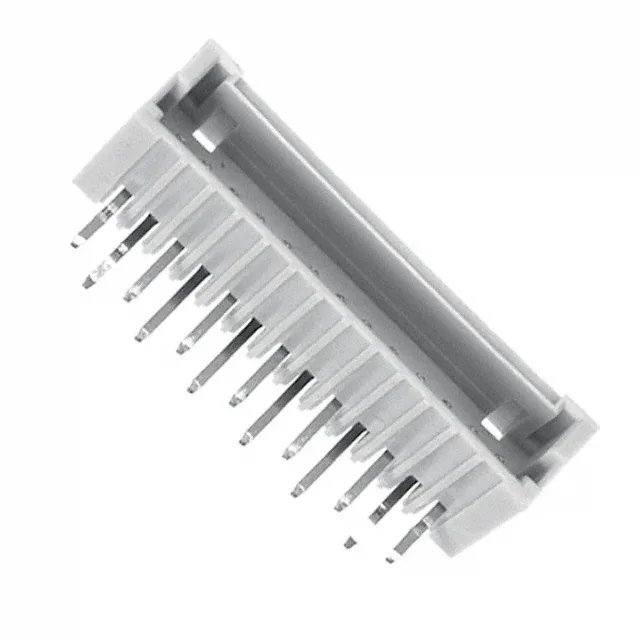

1-292206-0
TE Connectivity AMP Connectors
10Bulk-30°C ~ 105°C
Ref. price$0.4700
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 12922 Series
41 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 12922 Series
The TE Connectivity AMP Connectors 12922 Series series groups 41 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of General Purpose, connector type of Header and contact finish - mating of Tin. Variants differ by contact finish thickness - mating, features and insulation height, so you can match the exact contact finish thickness - mating your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 12922 Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness - mating
- - · 39.4µin (1.00µm)
- Features
- - · Board Guide
- Insulation height
- 0.193\" (4.90mm) · 0.272\" (6.91mm)
- Mounting type
- Through Hole · Through Hole, Right Angle
- Overall contact length
- - · 0.307\" (7.80mm)
- Package
- Bulk · Tray
- Positions
- 10 · 11 · 12 · 13 · 14 · 15 · 17
Shared specifications
- Applications
- General Purpose
- Connector type
- Header
- Contact finish - mating
- Tin
- Contact finish - post
- Tin
- Contact finish thickness - post
- -
- Contact length - mating
- 0.094\" (2.40mm)
- Contact length - post
- 0.118\" (3.00mm)
- Contact material
- Brass
- Contact shape
- Square
- Current rating
- Varies by Wire Gauge
- Fastening type
- Detent Lock
- Gender
- Male Pin
Variant comparison
| Parameter | 1-292206-0 | 1-292206-2 | 1-292206-3 | 1-292206-4 | 1-292206-5 | 1-292206-7 |
|---|---|---|---|---|---|---|
| Contact finish thickness - mating | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
| Insulation height | 0.193\" (4.90mm) | 0.193\" (4.90mm) | 0.193\" (4.90mm) | 0.193\" (4.90mm) | 0.193\" (4.90mm) | 0.193\" (4.90mm) |
| Mounting type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Overall contact length | - | - | - | - | - | - |
| Package | Bulk | Tray | Tray | Tray | Bulk | Tray |
| Positions | 10 | 12 | 13 | 14 | 15 | 17 |
Request a quote on any TE Connectivity AMP Connectors 12922 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 12922 Series variants differ?
- TE Connectivity AMP Connectors 12922 Series part numbers differ by contact finish thickness - mating, features, insulation height and mounting type. Use the selection guide above to pick by contact finish thickness - mating.
- How many TE Connectivity AMP Connectors 12922 Series part numbers are listed?
- 41 TE Connectivity AMP Connectors 12922 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 12922 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 12922 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
