Right-angle header for tight board layouts

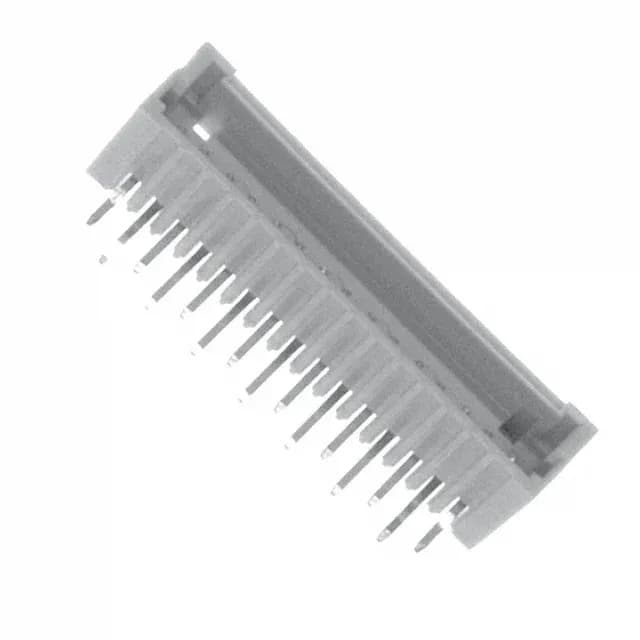

The 1-292206-5: This is a 15-position single-row header from TE's Mini CT series, pitched at 1.50 mm and terminated through-hole with a right-angle orientation. The shrouded 4-wall design and detent lock keep the mating connector seated in equipment that sees movement or vibration. Rated for 50 VAC, with current capacity that depends on the attached wire gauge. The tin-on-tin contact interface suits moderate mating-cycle duty in indoor or automotive cabin environments.
The 1.50 mm pitch and 0.094" (2.40 mm) mating pin length define the footprint. The right-angle solder tails extend 0.118" (3.00 mm) past the board surface. Mates with Mini CT crimp-socket housings that carry the corresponding 1.50 mm pitch receptacle.
