Right-angle 14-position header for board-to-cable wiring

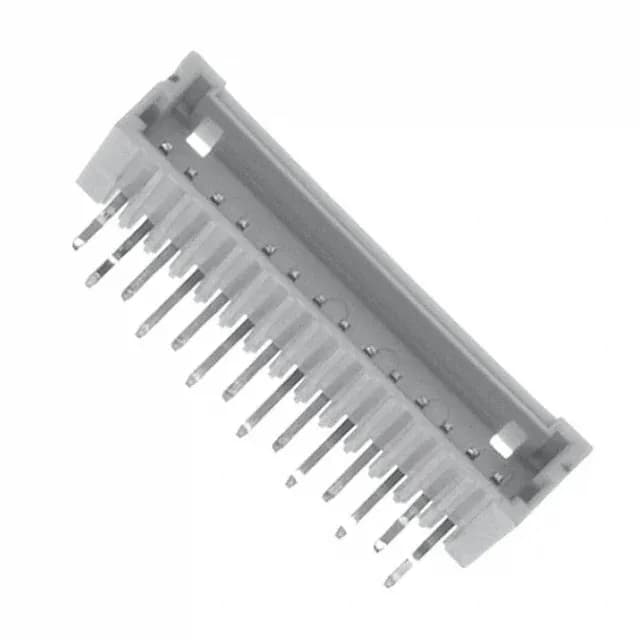

The 1-292206-4: This is a 14-circuit, single-row header on 1.50mm pitch, terminated through-hole with kinked solder pins.
At 1.50mm pitch, this header is denser than the common 2.54mm (0.100") types, saving board space for compact designs. The 14 positions are all loaded — no optional empty spots. The kinked pin (3.00mm post length) provides a solder fillet anchor on the through-hole pad, improving mechanical retention compared to a straight pin in high-vibration assemblies.
ROHS3 compliant. Housing is UL94 V-0 rated glass-filled nylon.
