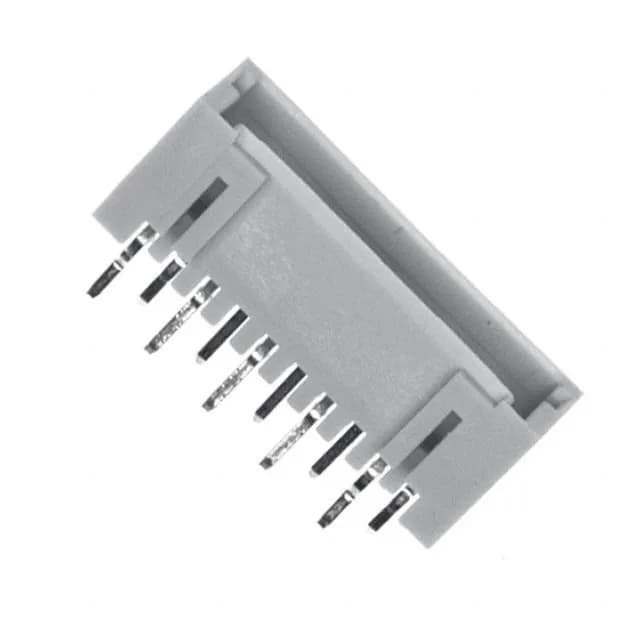

TE Connectivity AMP Connectors Mini CT series, 1-292207-0, Board to Cable/Wire header, 10 positions, 1.50mm pitch, shrouded - 4 wall, detent lock, through-hole, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.272\" (6.91mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.307\" (7.80mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 10 positions are all loaded, so no blank spots to work around.
Together they suit moderate-vibration applications like industrial control panels or automotive interior modules.
The mating pitch is 0.059" (1.50 mm), single-row, 10 positions all loaded.
Yes — it is a shrouded - 4 wall header, which protects the male pins and guides the mating connector into alignment.
