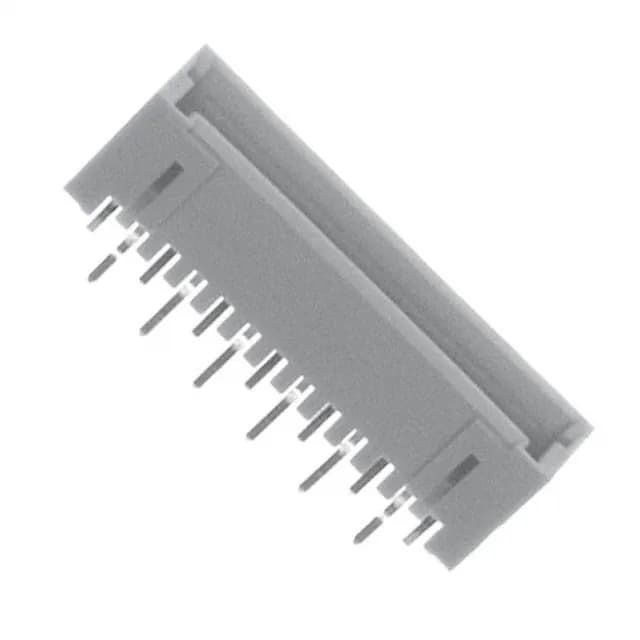

TE Connectivity AMP Mini CT header, 1-292207-3, Board to Cable/Wire, 13 positions, single row, 1.50mm pitch, shrouded - 4 wall, detent lock, through hole, kinked pin solder termination, tin contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.272\" (6.91mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 13 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.307\" (7.80mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The shrouded - 4 wall design with a detent lock mates with the corresponding Mini CT receptacle housing; the lock provides positive retention against cable pull or vibration.
Through-hole mounting with kinked solder pins — the kink provides stand-off for flux cleaning and strain relief during wave solder. Contact length - post is 0.118" (3.00 mm), overall contact length 0.307" (7.80 mm).
Voltage rating is 50 VAC. The glass-filled nylon housing is rated UL94 V-0.
The 1-292207-3 mates with a Mini CT receptacle housing (e.g., 1-292215-3 or similar) and requires the matching crimp terminal for the wire gauge used. The detent lock on the header engages with the receptacle latch.
The pitch is 0.059" (1.50 mm). This is the center-to-center spacing between adjacent pins, which determines the PCB footprint and the mating housing width.
