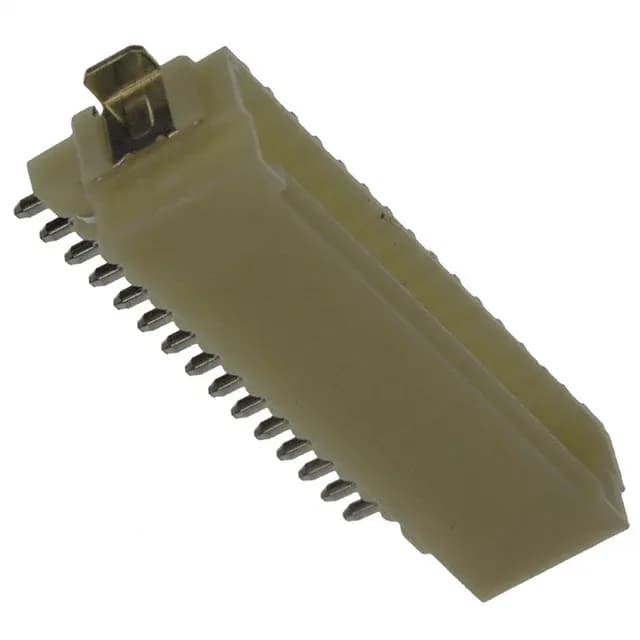

TE Connectivity AMP Connectors Mini CT header, 1-292227-5, 15 positions, 1.50 mm pitch, surface mount right-angle, shrouded - 4 wall, detent lock, tin-plated contacts, UL94 V-0, -30°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C~105°C |
| Contact material | Brass |
| Insulation color | Beige |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 15 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
The 1-292227-5 is a 15-position, single-row header from TE's Mini CT series, pitched at 1.50 mm.
The insulation height of 0.193" (4.90 mm) and mating pin length of 0.094" (2.40 mm) define the clearance needed above the board for the mating receptacle.
The 1.50 mm pitch, single-row, shrouded interface with detent lock requires the matching female housing from the same series.
Yes, the 1-292227-5 is ROHS3 compliant.
