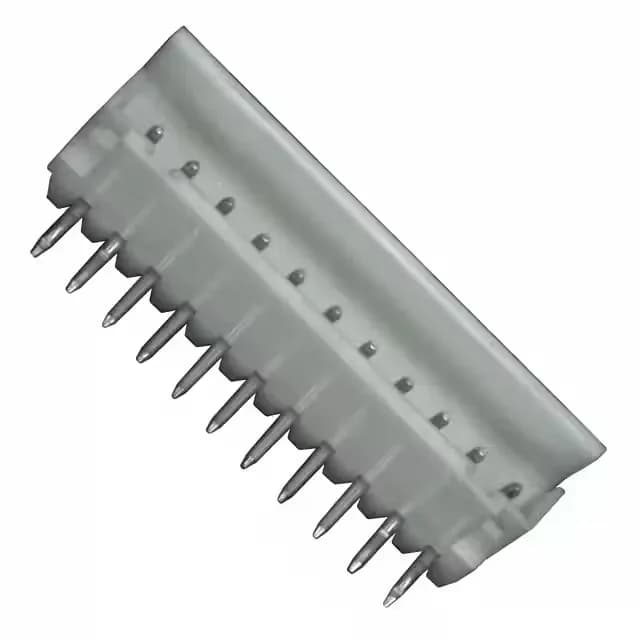

1-292250-1 TE Connectivity CT Header, R/A 11 Pos 2mm Pitch

MPN1-292250-1
Active

TE Connectivity CT series, 1-292250-1, shrouded 4-wall header, 11 positions, 2.00mm pitch, right-angle through-hole, kinked pin solder termination, tin-plated contacts, detent lock, UL94 V-0.

$2.3600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-292250-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-292250-1 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorNatural
Insulation height0.228\" (5.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

1-292250-1 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions11
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact length - mating0.165\" (4.20mm)

Product details

Right-Angle 11-Position Header for Board-to-Cable Routing

The 1-292250-1: The current rating depends on wire gauge of the mating terminal; for typical 22-24 AWG circuits, the 2.00mm pitch and tin interface support 2-3 A per contact within a 30°C temperature rise.

This header mates with TE CT series crimp receptacle housings (e.g., 1-292161-1 for single-row, 11-circuit) using 2.00mm-pitch female terminals. The detent lock engages with the matching latch on the receptacle housing. The kinked solder pins provide through-hole retention during wave soldering. The 0.126" post length is designed for standard 1.6mm PCBs; verify the board hole diameter matches the square pin cross-section per the product drawing.
