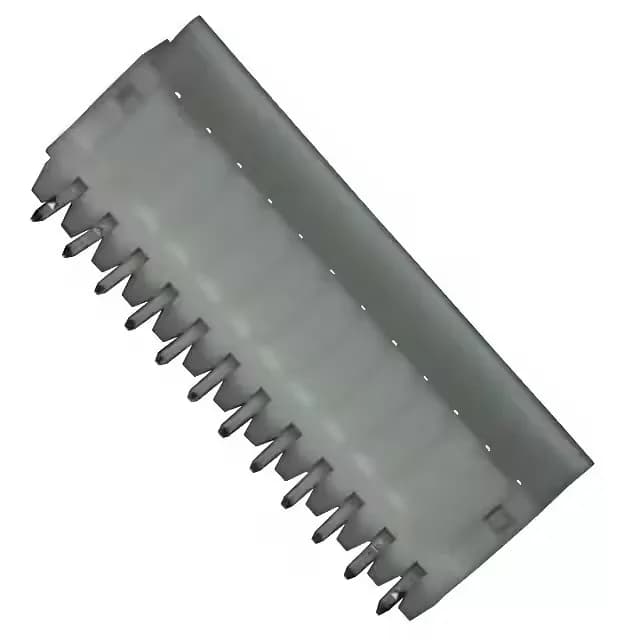

TE Connectivity AMP Connectors CT series, Board to Cable/Wire, Header, Male Pin, 12 Positions, 2.00mm Pitch, Through Hole Right-Angle, Shrouded - 4 Wall, Detent Lock, Tin Plating, UL94 V-0
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.165\" (4.20mm) |
The 1-292250-2: A detent lock provides audible and tactile mating confirmation — useful in applications where the connector sees vibration or where the assembler needs positive feedback that the pair is fully seated.
The 0.126-inch (3.20 mm) post length and kinked pin design suit through-hole wave soldering.
Availability and current pricing confirmed at quote time.
