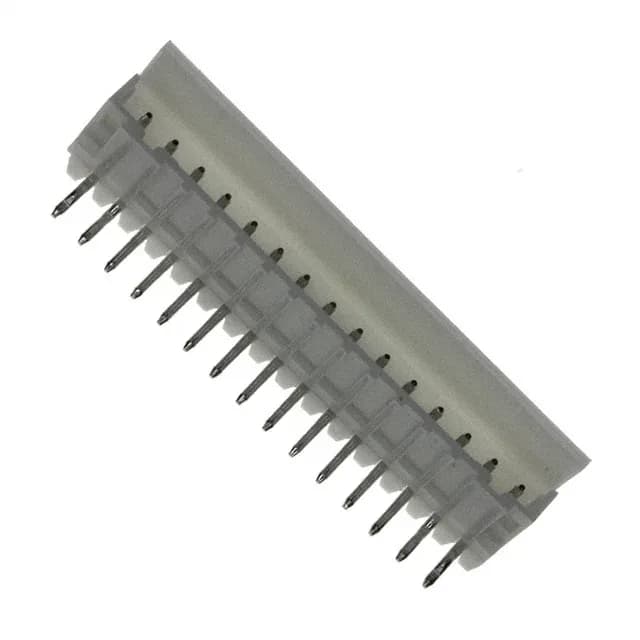

1-292250-5 TE Connectivity CT Header, 15 Pos, 2mm, R/A

MPN1-292250-5
Active

TE Connectivity AMP Connectors CT series, Board to Cable/Wire, Header, Male Pin, 15 Positions, 0.079" (2.00mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Detent Lock, Tin Contacts, UL94 V-0

$1.3100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-292250-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-292250-5 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorNatural
Insulation height0.228\" (5.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

1-292250-5 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions15
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact length - mating0.165\" (4.20mm)

Product details

15-Position Right-Angle Header for Wire-to-Board Runs

A detent lock provides a positive tactile latch that resists vibration-induced disconnection without requiring a separate locking clip. The housing is natural polyamide 6/6 with a UL94 V-0 flammability rating.

Board Fit and Routing Clearance

The mating pin length is 4.20 mm, and the post length below the board is 3.20 mm.

The only difference is position count: 15 positions on the 1-292250-5 versus 11 positions on the 1-292164-1. If your BOM calls for 11 circuits, the 1-292164-1 is a direct drop-in; for 15 circuits, this is the part.

Frequently asked questions

What is the closest equivalent or substitute for 1-292250-5?

Within the same TE CT series, the 1-292164-1 is the closest functional equivalent — same pitch, orientation, shrouding, and lock, but with 11 positions instead of 15. For a 15-position match, this part is the direct choice.
