Right-Angle Header for Board-Edge Wire Harnesses

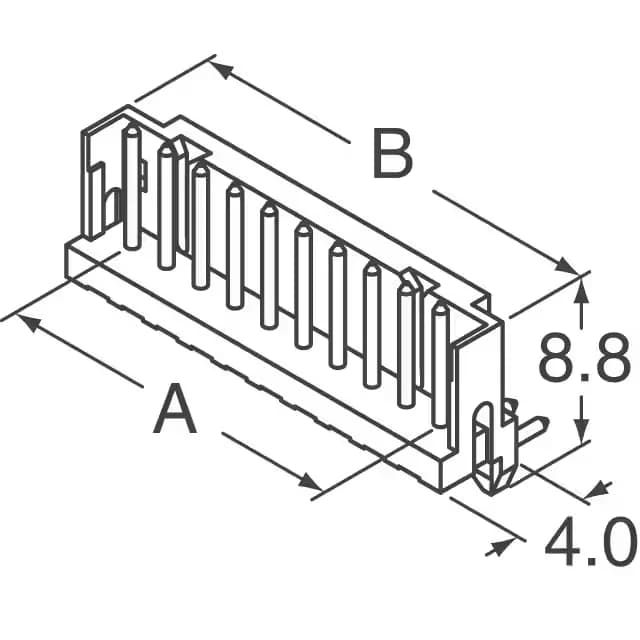

The 1-292253-0 is a 10-position, single-row header from TE's CT series, designed for Board to Cable/Wire connections. The 2.00 mm pitch (0.079") sets the board footprint — a common density for signal-level wiring in appliances, HVAC controls, and industrial panels.
Detent Lock and Housing Construction
Current Rating and Wire Gauge Dependency
In practice, with the matching CT crimp terminal and 22 AWG wire, expect 3-4 A per contact at a 30°C rise. Voltage rating is 125 VAC, suitable for low-voltage signal and control circuits inside equipment. The contact material is brass with tin finish — adequate for the current levels typical of this pitch and wire range.
