TE Connectivity AMP Connectors 1-292253-3 — Pin Headers

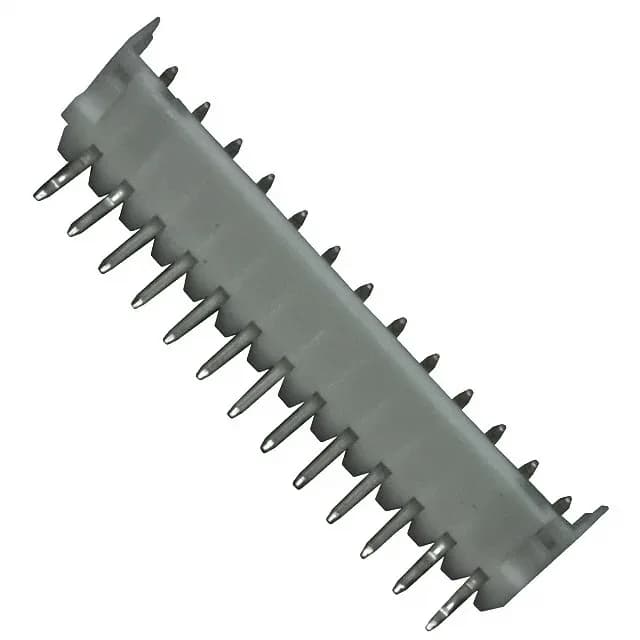

1-292253-3 TE Connectivity CT Header, 13 Pos, 2mm

MPN1-292253-3
Active

TE Connectivity AMP Connectors CT series, Board to Cable/Wire, Header, Male Pin, 13 circuits, 2.00 mm pitch, Through Hole, Right Angle, Shrouded - 3 Wall, Detent Lock, Tin plating, UL94 V-0, Active, ROHS3

$1.0000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-292253-3 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorNatural
Insulation height0.157\" (4.00mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

1-292253-3 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 3 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows1
Pitch0.079\" (2.00mm)
Positions13
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact length - mating0.177\" (4.50mm)

Product details

13-position, 2.00 mm pitch, right-angle header for board-to-cable assemblies

The 1-292253-3 is a 13-position, single-row header from TE's CT series, designed for board-to-cable/wire connections.

Shrouded shell and detent lock for vibration resistance

The detent lock provides a positive hold against vibration without needing a separate latch mechanism. The header is rated for 125 VAC and the current rating varies by wire gauge, typical for signal-level circuits in general-purpose applications.

Active production, ROHS3 compliant, sourced per RFQ

The header is supplied in bulk packaging. The base product number is 292253.

Frequently asked questions

What is the pitch and position count of 1-292253-3?

It is a 13-position, single-row header with a 2.00 mm pitch.

What is the mating half for 1-292253-3?

It mates with a CT series receptacle housing (sold separately) that accepts the corresponding crimp terminals. The detent lock engages with the mating housing latch.
