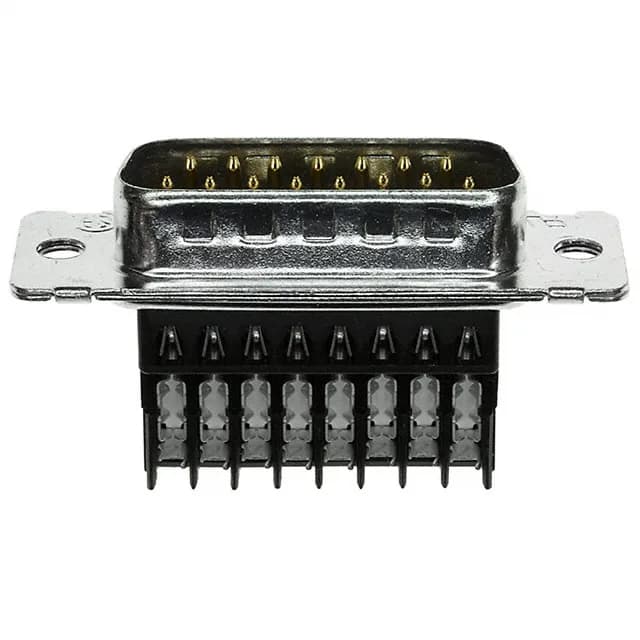

15-Position D-Sub Plug with IDC Termination — the Field-Service Choice
Grounding indents on the steel shell bleed shield current before the signal pins engage, which matters for EMI-sensitive harnesses in industrial cabinets or test equipment.
IDC Termination vs Crimp — the Wire-Gauge Reality
The 1-745494-5 uses IDC termination, which accepts 22-26 AWG discrete wire without a separate crimp terminal. This is the main distinction from standard D-sub plugs that require a crimp tool and individual contacts. The trade-off: IDC is faster for low-to-medium volume assembly and rework, but the wire gauge range is fixed — you cannot step outside 22-26 AWG. For a harness builder, this means confirming the wire size against the expected load per pin before committing to the IDC route.
Gold Plating and Grounding Indents — Fit for Repeated Mates
The grounding indents on the shell provide a low-impedance path to the mating receptacle's shield before the signal pins touch, which means the ground circuit closes first during insertion and opens last during extraction. For a technician swapping cable assemblies in a live rack, that sequencing matters for ESD and transient protection.
