TE Connectivity AMP Connectors FFC/FPC connector, 1-84981-0, 10 positions, 0.039" (1.00mm) pitch, 1 A, 125 V, tin-plated phosphor bronze contacts, surface mount right-angle, top contact, solder termination.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C~85°C |
| Housing color | Beige |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |

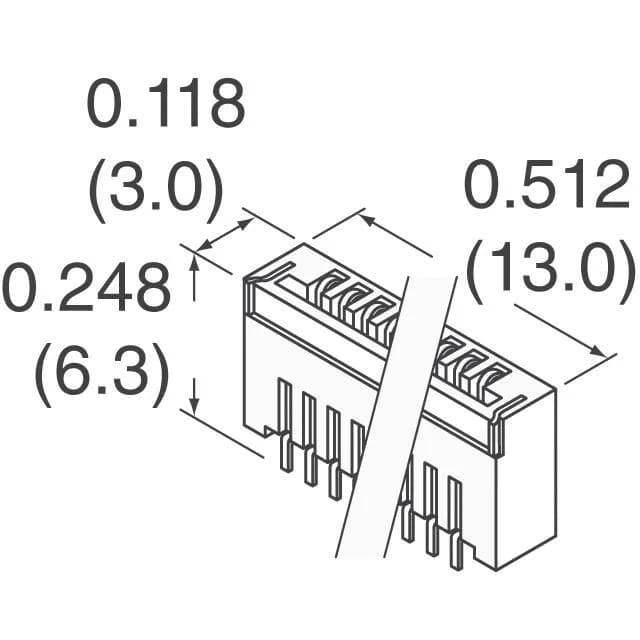

| Height above board | 0.118\" (3.00mm) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 10 |
The 1-84981-0 is a 10-position FFC/FPC connector with 0.039" (1.00mm) pitch, top contact, and surface mount right-angle orientation.
The 10-position count matches basic signal or power routing needs on a 1.00mm pitch FFC. The connector accepts 0.30mm-thick FFC cable, a common thickness for this pitch class.
The pitch is 0.039" (1.00mm).
