TE Connectivity AMP Connectors 1-84981-6 — FFC / FPC Cable Assemblies

1-84981-6 TE Connectivity FFC/FPC Connector 16 Pos 1mm Top

MPN1-84981-6
Active

TE Connectivity AMP Connectors 1-84981-6, FFC/FPC connector, 16 positions, 1.00 mm pitch, top-contact, surface-mount right-angle, tin-plated phosphor bronze contacts, 1 A, 125 V, 0.30 mm FPC thickness.

$1.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-84981-6 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-84981-6 specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating125V
Current rating1A
Operating temperature-20°C~85°C
Housing colorBeige
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled

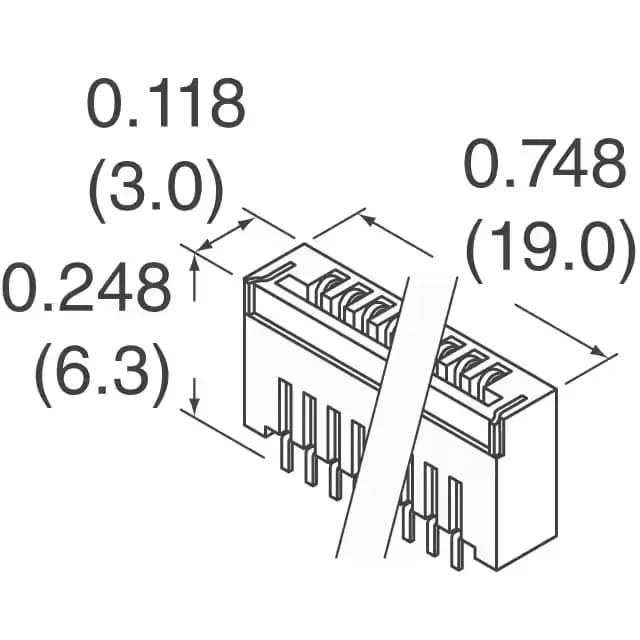

Height above board0.118\" (3.00mm)
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions16

Product details

Pitch, Contact Side, and Cable Fit

The 1-84981-6: This is a top-contact connector: the exposed copper pads on the FPC must face upward when inserted. A flipped cable shorts the wrong row.

Current, Voltage, and Signal Duty

The narrow pitch and tin plating limit the current ceiling. Tin contact finish on phosphor bronze base: suitable for moderate mating cycles in clean, indoor environments. For repeated field-service mating, a gold-plated variant would extend cycle life.

Mated height above board is 3.00 mm.

Frequently asked questions

Where can I buy 1-84981-6 and what is the lead time?

1-84981-6 is sourced through independent distribution. No stock-holding claim — availability is verified per request.

Is 1-84981-6 RoHS compliant?

Yes, it is ROHS3 Compliant.

What is the difference between 1-84981-6 and 84981-6?

The base product number is 84981. The '1-' prefix typically indicates a specific packaging or plating variant — 1-84981-6 is the active order code for the tin-plated, top-contact, 16-position version in Tape & Reel packaging. 84981-6 may refer to an older or different packaging option; confirm the full part number against your BOM.

Can I use 1-84981-6 for a 16-pin FFC with 1 mm pitch?

Yes — the connector has 16 positions at 1.00 mm pitch and accepts 0.30 mm thick FFC. Ensure the cable conductors are on the top side when inserted (top-contact type).
