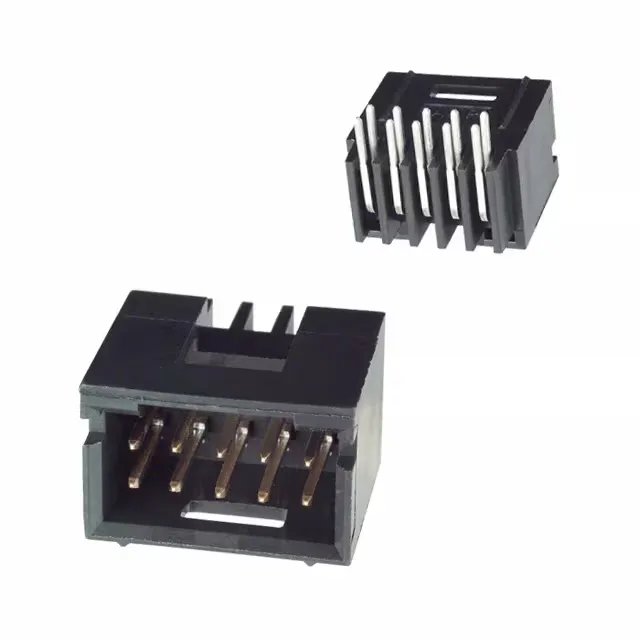

TE AMPMODU Mod II header, order code 103167-2, 10 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
TE AMPMODU Mod II 103167-2 Header, 10 pos, 2.54mm
MPN103167-2
Active
TE AMPMODU Mod II header, order code 103167-2, 10 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
$3.8511Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is 103167-2's listed style and series?
The style is Board to Board or Cable; the series is AMPMODU Mod II from TE Connectivity.
