TE Connectivity AMP Connectors 103168-7 — Pin Headers, Sockets & Housings

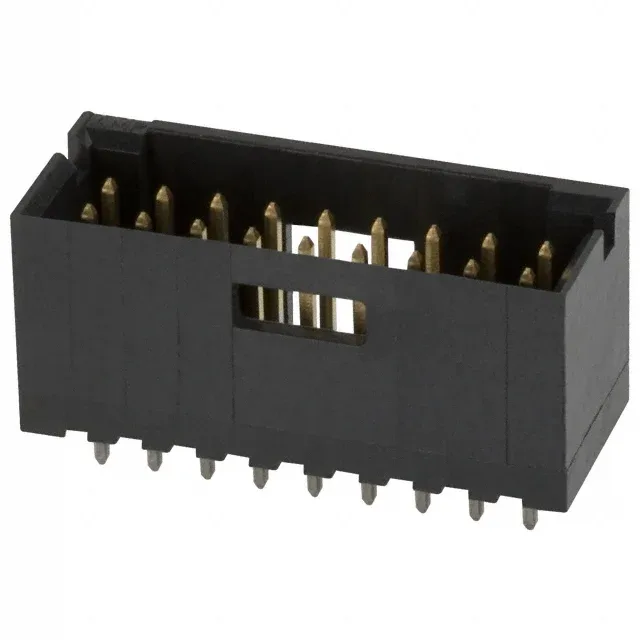

103168-7 TE Connectivity AMPMODU Mod II Header, 18 Pos

MPN103168-7
Obsolete

TE Connectivity AMP Connectors AMPMODU Mod II, 103168-7, 18-position dual-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder, gold-plated mating contacts, 3 A per contact, UL94 V-0 black thermoplastic housing.

$3.7300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103168-7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

103168-7 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

103168-7 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions18
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

18-Position Dual-Row Shrouded Header at 0.100" Pitch

The 103168-7: The UL94 V-0 thermoplastic housing and detent lock provide secure retention in moderate-vibration environments.

Obsolete — Sourced Through Independent Channels

The 103168-7 carries an Obsolete lifecycle status from the manufacturer. No official successor or pin-compatible replacement has been designated by TE Connectivity. Availability is limited to independent distribution surplus stock, confirmed at RFQ against the BOM quantity.

Frequently asked questions

What is the replacement for 103168-7?

No official replacement or pin-compatible cross-reference has been published by TE Connectivity. The AMPMODU Mod II series includes active headers with similar pitch and row spacing, but each requires a board layout review and mating-half confirmation.
