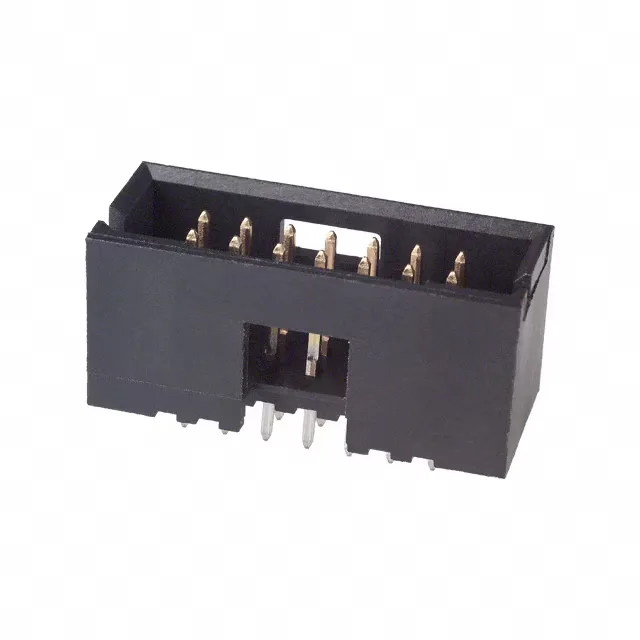

TE AMPMODU Mod II header, order code 103169-5, 14 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole, solder termination.
TE AMPMODU Mod II 103169-5 Header, 14-Pos 2.54mm
MPN103169-5
Active
TE AMPMODU Mod II header, order code 103169-5, 14 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole, solder termination.
$2.1979Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for 103169-5?
RoHS and REACH documentation is provided by TE Connectivity for this part number.
