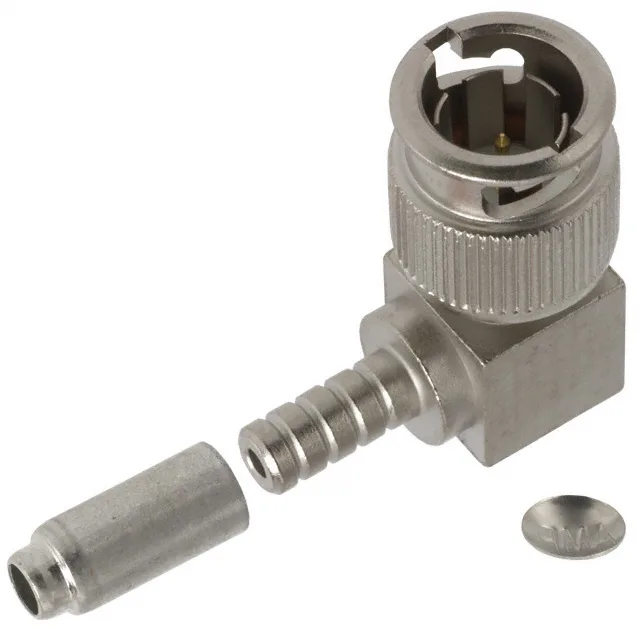

1274566-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

1274566-1 TE Mini BNC Plug, 75 Ohm, 2 GHz, Obsolete

MPN1274566-1
Obsolete

TE Connectivity Mini BNC plug, 75 Ohm, 2 GHz, 300 V, 500 mating cycles, bayonet lock, free-hanging right-angle, solder contact, crimp shield, includes end cap and ferrule.

$40.8800Ref. price · indicative, final on quote
1274566-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1274566-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating300 V
Frequency - max2 GHz
Cable groupAT&T 735A
Operating temperature-40°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageTray
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

Buyers maintaining legacy AT&T 735A cable assemblies should plan for last-time-buy or broker-channel procurement.

This plug is specified for AT&T 735A cable group — a 75 Ohm dual-shielded coaxial cable commonly used in legacy telecom and broadband video distribution. The centre contact is solder-terminated; the shield is terminated by crimping the included ferrule over the cable jacket.

Construction and Environmental Range

The dielectric is PTFE, which maintains stable impedance and low loss up to 2 GHz.

Frequently asked questions

Is 1274566-1 obsolete?

Yes, TE Connectivity lists the 1274566-1 as Obsolete.
