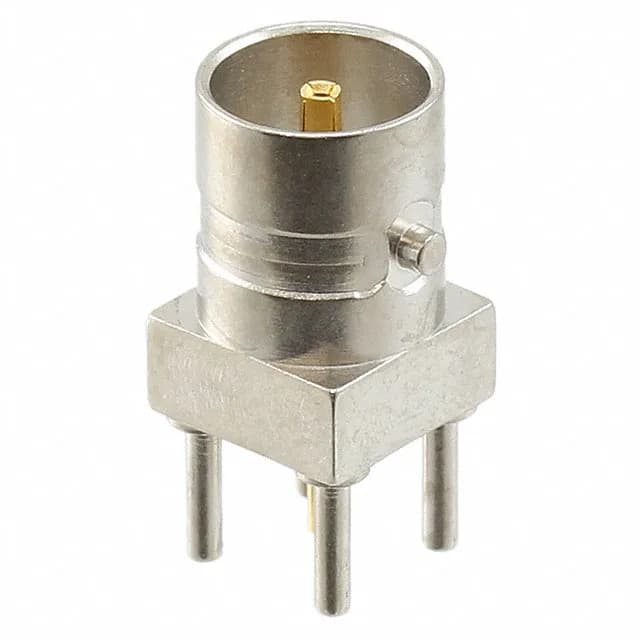

TE Connectivity, Mini BNC Jack, 1274595-1, 75 Ohms, 2 GHz, 300 V, 500 mating cycles, Through Hole, Solder, Bayonet Lock, 1 Port, Bulk.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 300 V |
| Frequency - max | 2 GHz |
| Operating temperature | -40°C ~ 85°C |
| Body material | Stainless Steel |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Impedance | 75 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The 1274595-1: This is a single-port, bulk-packaged component from the 1274595 base series.
The bayonet lock provides a secure, vibration-resistant mate without the need for tools — a quarter-turn engages the lock. The through-hole solder termination is a standard method for PCB mounting, requiring the board to have plated through-holes sized for the center pin and shield legs.
The 1274595-1 is an obsolete part and is not available through standard distribution. Submit an RFQ to check current availability and pricing — no stock or lead-time figure is provided here.
The 1274595-1 is a 75 Ohm mini BNC jack rated to 2 GHz and 300 V. It has a gold-plated phosphor bronze center contact, nickel-plated stainless steel body, PTFE dielectric, and a bayonet lock. Termination is through-hole solder, and it is supplied in bulk packaging.
