1274714-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1274714-2, 1.0/2.3 Jack, 75 Ohm, 3-Port

MPN1274714-2
Active

TE Connectivity 1.0/2.3 jack, 1274714-2, 75 Ohm, 3 ports, 2 GHz max, gold-plated brass body, board edge/end launch and through hole right angle mount, solder termination.

$18.2385Ref. price · indicative, final on quote
1274714-2 datasheet
StockIn Stock (37)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1274714-2 Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch; Through Hole, Right Angle
Connector type1.0/2.3
Fastening typePush-Pull
Frequency - max2 GHz
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance75 Ohms
Body finishGold
Mating cycles500
Number of ports3
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

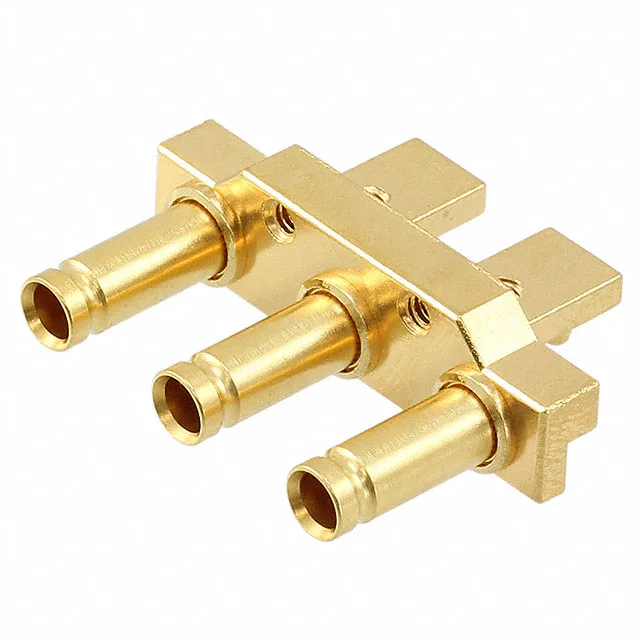

75 Ohm 1.0/2.3 Triple-Port Jack for Coaxial Signal Distribution

The 1274714-2: It carries a 2 GHz maximum frequency rating, making it suited for video distribution, CATV headends, and telecom signal routing where multiple coaxial paths share a common interface.

This jack supports two mounting configurations: board edge / end launch for compact RF layouts where the connector sits at the PCB perimeter, and through hole right angle for perpendicular board routing. The push-pull fastening type allows quick mating and unmating in field-service scenarios.

Construction and Signal Integrity

Beryllium copper provides spring retention across the 500 mating cycle rating without permanent set. The gold finish on both the body and center contact resists corrosion in indoor equipment environments where repeated connects and disconnects occur.

Frequently asked questions

What is the impedance of 1274714-2?

The 1274714-2 is a 75 Ohm jack, designed for 75 Ohm coaxial systems. This impedance is maintained by the PTFE dielectric and the geometry of the 1.0/2.3 interface.

What is the mounting type for 1274714-2?

The 1274714-2 supports board edge / end launch mounting and through hole right angle mounting.
