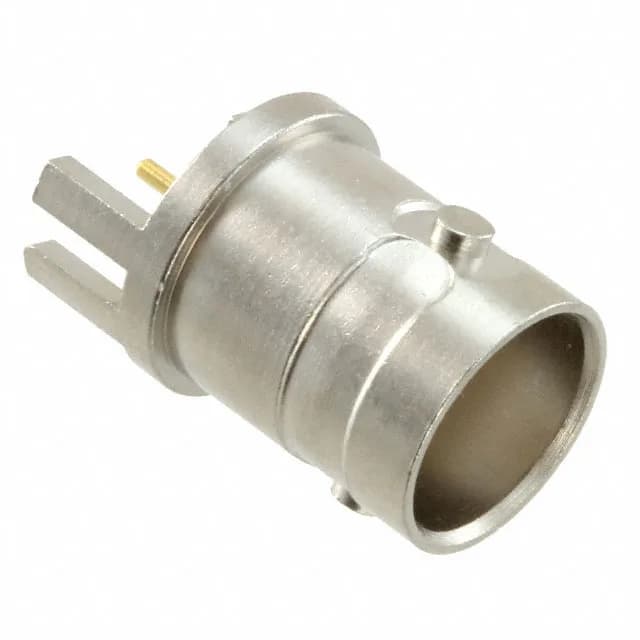

TE Connectivity BNC jack, female socket, 50 Ohms, 4 GHz max, 500 V, board edge end launch, solder termination, gold center contact, nickel body, bulk.
| Parameter | Value |
|---|---|
| Mounting | Board Edge, End Launch |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Operating temperature | -55°C ~ 85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The nickel-plated brass body and solder shield termination give a clean ground reference; the PTFE dielectric maintains consistent dielectric constant across the frequency band. For a BNC, 4 GHz is the practical ceiling — above that the interface geometry starts to support higher-order modes, so stay under that ceiling for a clean VSWR.
The 1274727-1 is rated to 4 GHz maximum frequency. The BNC interface geometry limits clean signal transmission above that ceiling.
