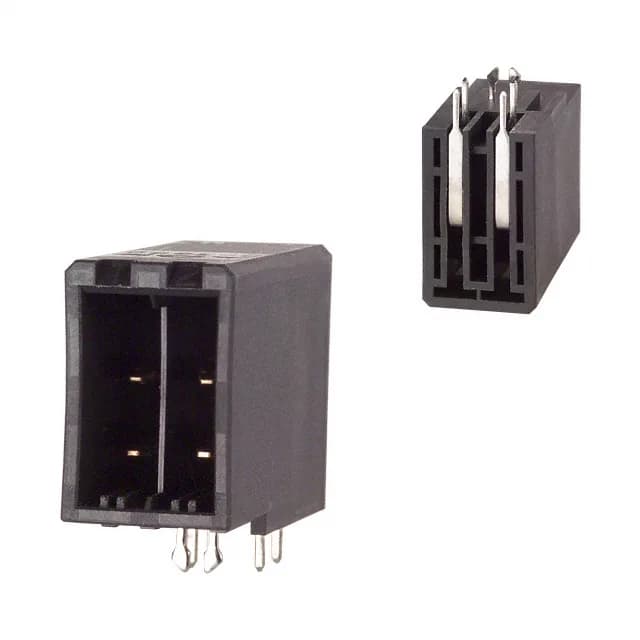

TE Connectivity AMP Connectors Dynamic D-3500 header, 1376133-2, 4 positions, 2 rows, 5.08 mm pitch, right-angle through-hole, shrouded 4-wall, gold mating contacts, board lock, UL94 V-0, -55°C to 105°C, 600 V rating.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3500 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.774\" (19.67mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1376133-2 is a 4-position, 2-row header from TE's Dynamic D-3500 series, designed for board-to-board or cable connections. Its 5.08 mm pitch and 600 V rating make it a fit for power distribution or high-voltage signal routing in industrial control panels and general-purpose equipment.
