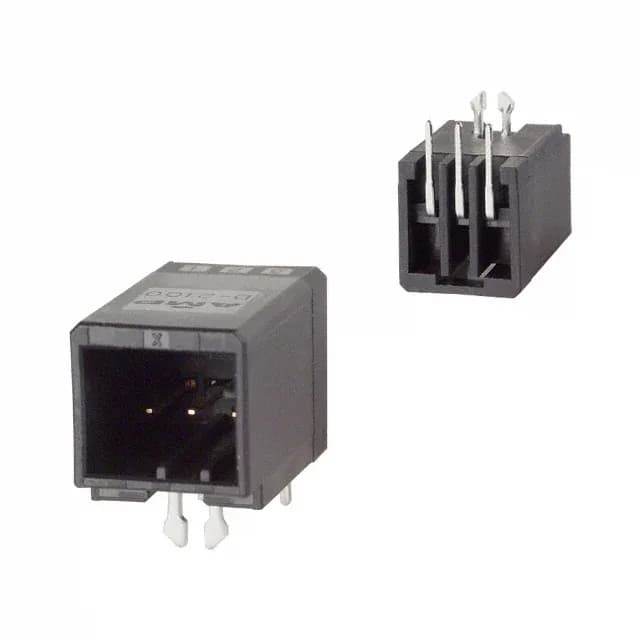

TE Connectivity AMP Connectors Dynamic D-2100 series, 1376135-1, 3-position single-row header, 2.50mm pitch, through-hole right-angle, shrouded 4-wall, gold mating contacts, board lock, 5A, 250V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.431\" (10.95mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.131\" (3.33mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1376135-1 is a 3-position, single-row header from TE's Dynamic D-2100 series, on 2.50mm pitch.
At 2.50mm pitch, this header fits standard 0.100-inch grid layouts but requires a tighter board routing than a 0.100-inch header.
