TE Connectivity AMP Connectors 1376136-2 — Pin Headers

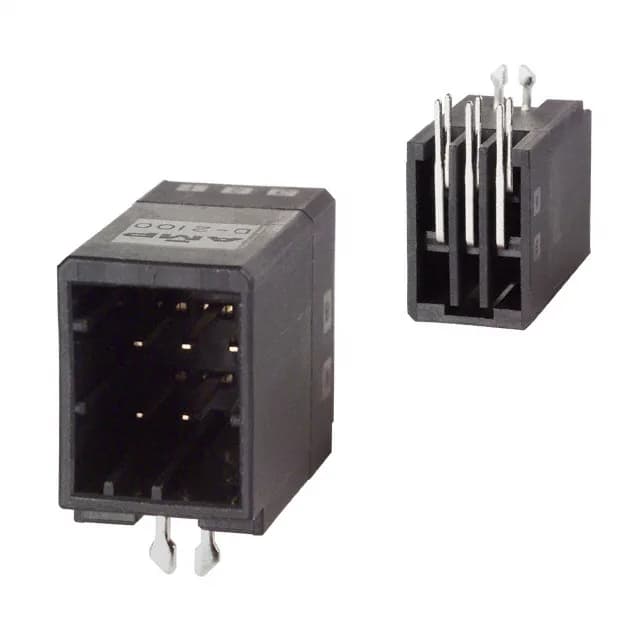

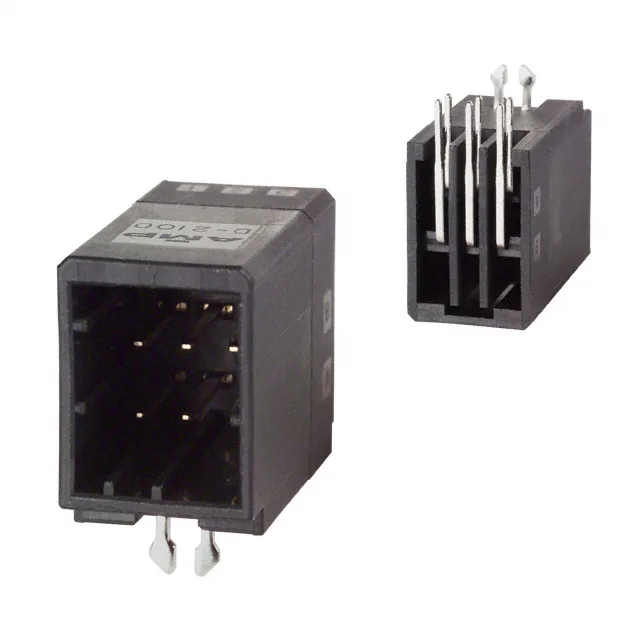

1376136-2 TE Connectivity Dynamic D-2100 Header 6 Pos 2.5mm

MPN1376136-2
Active

TE Connectivity AMP Connectors Dynamic D-2100 series, 1376136-2, board-to-board/cable header, 6 circuits, 2.50 mm pitch, 5 A, 250 VAC, right-angle through-hole, shrouded 4-wall, gold mating contacts, board lock, UL94 V-0.

$2.9800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-2100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1376136-2 key specifications
ParameterValue
SeriesDynamic D-2100
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250VAC
Current rating5A
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.579\" (14.70mm)
Insulation materialThermoplastic, Polyester, Glass Filled

All specifications

1376136-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.098\" (2.50mm)
Positions6
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

6-Position Dynamic D-2100 Header for Industrial Signal Routing

The 1376136-2 is a 6-position, dual-row header from TE's Dynamic D-2100 series, designed for board-to-board or cable connections in general-purpose and industrial applications. It carries a 5 A current rating per contact at 250 VAC, with a 2.50 mm pitch that balances routing density with reliable signal isolation.

Contact Plating and Mechanical Retention

Mating contacts are gold-plated to 15.0 µin (0.38 µm) over a copper alloy base, providing low and stable contact resistance across repeated mating cycles. The solder posts are tin-plated for reliable soldering.

Frequently asked questions

What is the pinout of 1376136-2?

The header has 6 positions, all loaded, arranged in 2 rows. The pinout is a standard 2x3 grid matching the Dynamic D-2100 series footprint — confirm the mating receptacle's keying and circuit layout from the series drawing.

Is 1376136-2 RoHS compliant?

Yes, it is rated ROHS3 Compliant.
