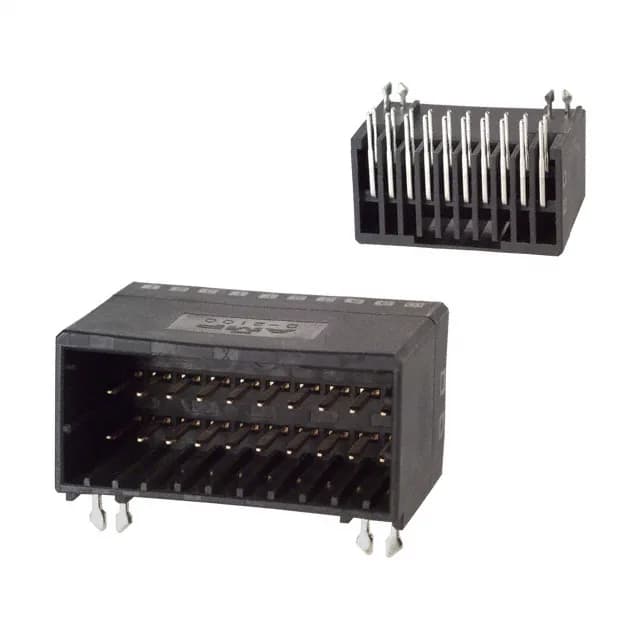

TE Connectivity AMP Connectors Dynamic D-2100 series, 1376137-2, header, 20 positions, 2.50 mm pitch, through hole right angle, shrouded - 4 wall, board lock, detent lock, 5 A, 250 VAC, -55°C ~ 105°C, gold mating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250VAC |
| Current rating | 5A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.579\" (14.70mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 20 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1376137-2 is a 20-position, 2.50 mm pitch header from TE's Dynamic D-2100 series. It is a through-hole, right-angle component with a full 4-wall shroud and a detent lock for secure mating.
The 4-wall shroud protects the rectangular tab contacts and guides the mating housing into alignment.
Yes, the 1376137-2 includes a board lock feature for secure PCB retention during soldering and vibration resistance.
