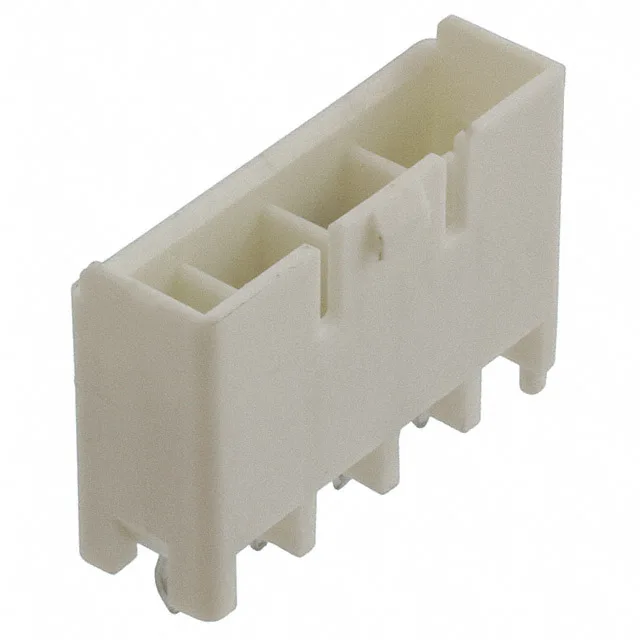

TE Connectivity AMP Connectors Power Key series, Board to Cable/Wire header, 4 circuits, 5.00 mm pitch, shrouded 4-wall, locking ramp, through-hole kinked pin solder termination, natural PA66 housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Power Key |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 300VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.555\" (14.10mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 19.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
With 4 positions loaded and a 5.00 mm pitch, this header is a low-circuit-count option for power inputs or outputs where you need a positive lock. The insulation height of 0.555" (14.10 mm) and mated stacking height of 19.4 mm give you a clear mechanical envelope for the mated pair.
The mating pitch is 0.197" (5.00 mm). This is a single-row header, so the 5.00 mm spacing applies between adjacent positions.
Yes, it is ROHS3 compliant per the manufacturer's listing.
This is a Power Key series header, so it mates with the corresponding Power Key receptacle housing and crimp terminals. The locking ramp fastening type is specific to the Power Key mating interface.
This active Power Key header is sourced to order per your BOM quantity.
