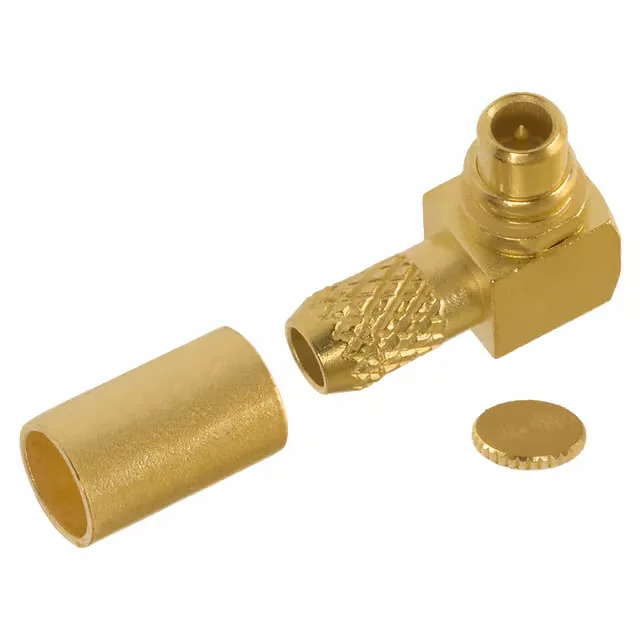

1408149-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 1408149-3 MMCX Plug, 50 Ohm, 6 GHz, Obsolete

MPN1408149-3
Obsolete

TE Connectivity MMCX plug, male pin, 50 Ohm, 6 GHz, right-angle free-hanging, solder contact, crimp shield, gold center contact, 500 mating cycles, 170 V, -55°C~155°C, bulk, kit includes connector + end cap + ferrule.

$11.2700Ref. price · indicative, final on quote
1408149-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1408149-3 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeSnap-On
Voltage rating170 V
Frequency - max6 GHz
Cable groupRD-316
Operating temperature-55°C~155°C
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50Ohm
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

MMCX Plug for RD-316 — 50 Ohm, 6 GHz, Right-Angle Exit

The 1408149-3: The right-angle free-hanging body lets the cable exit perpendicular to the mating axis — useful where the panel depth or enclosure wall forces a low-profile bend. The 500-cycle mating life is typical for the snap-on interface; the gold centre contact keeps the signal path corrosion-free across those cycles.

The centre contact is solder-terminated; the shield is crimped. The cable group is specified as RD-316, a common RG-316 variant — the ferrule and end cap in the kit are sized for that jacket diameter.

Frequently asked questions

Where can I buy the 1408149-3?

Submit a request for current pricing and availability — confirmed at quote time.

What cable is compatible with 1408149-3?

The listed cable group is RD-316, a common RG-316 variant. The kit includes the ferrule and end cap sized for that cable jacket.
