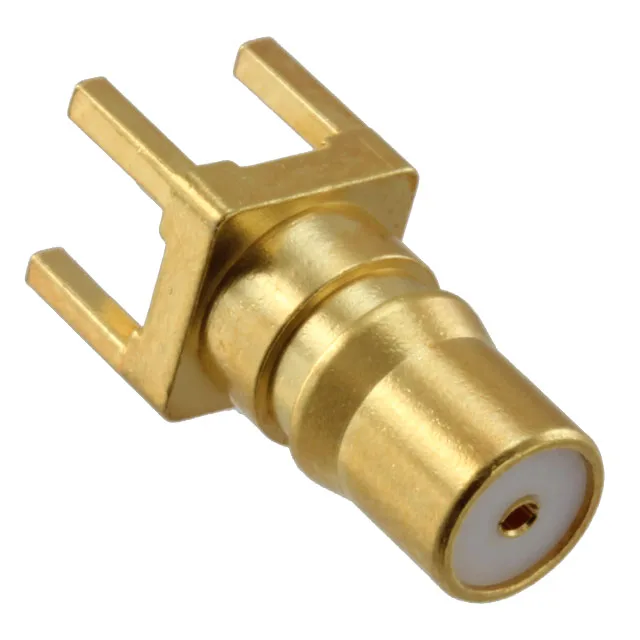

1408332-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1408332-1 QMA Jack, 50 Ohm, 6 GHz, Obsolete

MPN1408332-1
Obsolete

TE Connectivity QMA jack, female socket, 50 Ohms, 6 GHz, 1 port, through-hole, snap-on, gold body finish, bulk package.

$14.1956Ref. price · indicative, final on quote
1408332-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1408332-1 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max6 GHz
Operating temperature-40°C ~ 80°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50 Ohms
Body finishGold
Mating cycles100
Insertion loss0.25dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

QMA Jack, 50 Ohm — 6 GHz RF Interconnect

The TE Connectivity 1408332-1 is a QMA-series jack, female socket connector designed for quick-disconnect RF interconnects.

The center contact is beryllium copper with gold plating; the body is brass with gold finish. The dielectric is PTFE, which keeps insertion loss stable across the band. Rated for 100 mating cycles — the gold-on-gold interface handles repeated connects without fretting, but the snap-on latch sees wear after several hundred cycles.

Buyers should plan for a last-time-buy or identify a cross-reference from the QMA family.

Frequently asked questions

Where can I buy 1408332-1 available via RFQ confirmation?

Contact the storefront with your BOM for a same-day quote.

Is 1408332-1 obsolete?

Yes, the 1408332-1 carries an Obsolete lifecycle status from the manufacturer. No official replacement is listed; it is available through surplus and broker channels as stock permits.

What is the impedance of 1408332-1?

The 1408332-1 is a 50 Ohm QMA jack, rated to 6 GHz with an insertion loss of 0.25 dB. It is compatible with standard 50 Ohm systems and cables such as RG58.
