QMA Snap-On Jack for RG-174/187/316 Cable Runs
The 1408338-1: The snap-on fastening type gives you a positive lock without the turn-and-torque of an SMA — useful in tight panels or field setups where you need a fast mate and release. The 335 V voltage rating covers most signal-level and low-power RF paths.
Cable Prep and Termination Sequence

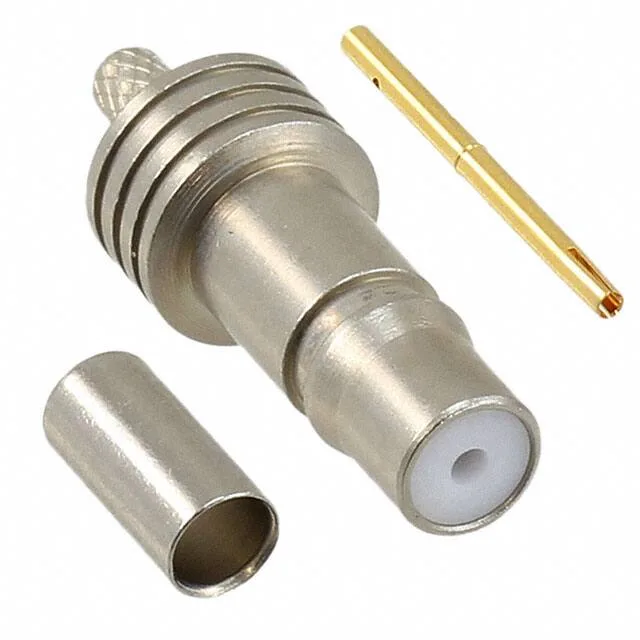

This jack is built for RG-174, RG-187, and RG-316 coax — the three common 50 Ohm cables with a nominal 0.100-inch jacket diameter. The shield termination is crimp, the centre contact is solder. You strip the cable, tin the centre conductor, solder it into the beryllium copper contact (gold-plated), then crimp the ferrule over the braid. No separate crimp tool is listed in the spec, but a standard hex crimp die for RG-174/316 size works — check the ferrule OD before you squeeze.
Materials and Environmental Reach
That PTFE gives you stable dielectric constant across temperature and frequency — important for keeping the 50 Ohm line consistent. Rated for 100 mating cycles — enough for test jigs and periodic reconnects, but not a daily-unplug production fixture.
