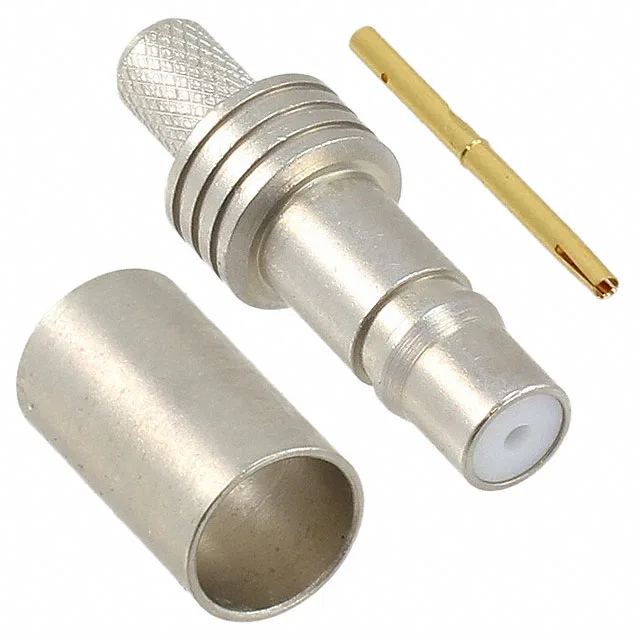

1408338-7 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1408338-7 QMA Jack, 50 Ohm, 6 GHz

MPN1408338-7
Active

TE Connectivity QMA jack, 50 Ohm, 6 GHz, snap-on, free-hanging, for RG-58/141/303 cable, includes connector + contact + ferrule, bulk.

$8.6015Ref. price · indicative, final on quote
1408338-7 datasheet
StockIn Stock (47)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1408338-7 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max6 GHz
Cable groupRG-58, 141, 303
Operating temperature-40°C ~ 80°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishNickel
Mating cycles100
Insertion loss0.25dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

QMA Jack for RG-58 Class Cable — 50 Ohm, 6 GHz

The TE Connectivity 1408338-7 is a QMA-series jack (female socket) in a snap-on fastening style, rated for 50 Ohm impedance up to 6 GHz. It is designed for free-hanging (in-line) use on RG-58, RG-141, and RG-303 cables.

This jack accepts RG-58, RG-141, and RG-303 cable groups — the most common 50 Ohm coax types for short-run RF interconnects. The shield terminates via crimp (ferrule included), and the centre contact is solder-terminated. The kit includes the contact and ferrule, so no separate terminal order is needed for a single cable end.

RF Performance and Environmental Range

Insertion loss is 0.25 dB across the band, and the voltage rating is 335 V.

Frequently asked questions

What cable types are compatible with TE Connectivity 1408338-7?

This QMA jack is designed for RG-58, RG-141, and RG-303 coaxial cables — common 50 Ohm types for short RF runs.

Does the 1408338-7 include all necessary parts (contact and ferrule)?

No separate terminal order is needed for a single cable end.

How do I get current pricing and availability for 1408338-7?

Pricing and stock are confirmed at quote time through independent distribution. Submit an RFQ for current availability and lead time.
