TE Connectivity AMP Connectors 1586042-8 — Pin Headers

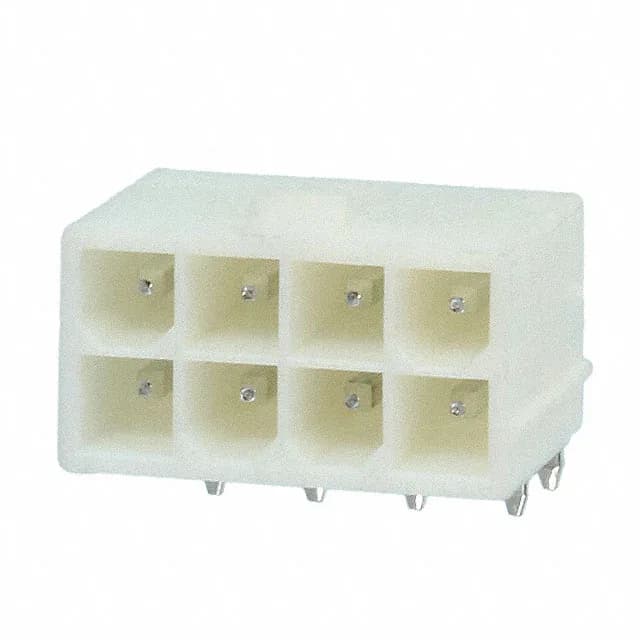

1586042-8 TE Connectivity VAL-U-LOK Header, 8 Pos, 4.2mm

MPN1586042-8
Active

TE Connectivity VAL-U-LOK 1586042-8, dual-row right-angle header, 8 circuits at 0.165-inch (4.20 mm) pitch, 9 A per circuit at 600VAC, tin-plated brass contacts on mating and solder-post sides (80.0 µin), locking ramp fastening, 4-wall shroud, through-hole termination, UL94 V-0 polyamide insulator rated -40 to 105 °C, ROHS3 compliant.

$1.0500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVAL-U-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1586042-8 key specifications
ParameterValue
SeriesVAL-U-LOK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Current rating9A
Operating temperature-40°C ~ 105°C
Contact materialBrass Alloy
Insulation colorNatural
Insulation height0.402\" (10.20mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1586042-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions8
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Contact finish - matingTin
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

Right-angle header for tight board-to-cable routing

The 1586042-8 is a dual-row, 8-position header from TE's VAL-U-LOK series, terminated through-hole and oriented right-angle to the board.

Locking ramp and shroud for vibration resistance

The locking ramp fastening and full 4-wall shroud prevent accidental disconnection in industrial or lighting environments where vibration is present. Compared to the straight-through sibling 4-1775099-7 (same pitch and current rating), the right-angle orientation of 1586042-8 saves vertical board clearance, making it the choice for low-profile enclosures.

Frequently asked questions

Where can I buy 1586042-8 and what is the lead time?

1586042-8 is an active TE Connectivity VAL-U-LOK header. We source it per RFQ against your BOM quantity — current pricing and lead time are confirmed at quote time. Submit an RFQ through the site for a firm quote.

Does 1586042-8 have a shroud and locking ramp?

Yes, the 1586042-8 has a full 4-wall shroud and a locking ramp fastening. The shroud protects the pins, and the locking ramp secures the mating receptacle against vibration.
