TE Connectivity VAL-U-LOK 1586044-4, dual-row right-angle header, 4 positions, 0.165 inch (4.20 mm) pitch, tin-plated brass contacts rated 9 A per circuit at 600 VAC, locking ramp, shrouded 4-wall, through-hole solder termination with mounting flange, UL94 V-0 polyamide housing, -40 to 105 °C operating range.
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Natural |
| Insulation height | 0.386\" (9.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 4 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |

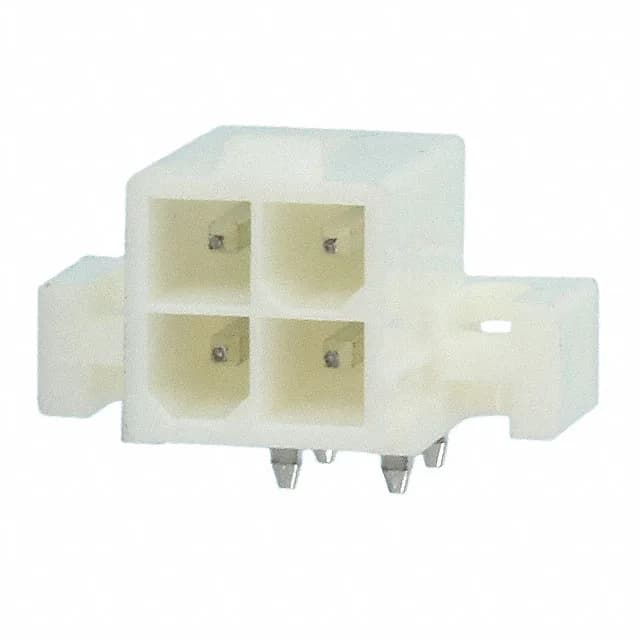

The 1586044-4 is a dual-row, right-angle header from the VAL-U-LOK series, with 4 positions on a 4.20 mm pitch.
A mounting flange on each end provides additional board retention after soldering.
The through-hole, right-angle solder tails have a post length of 0.142 inch (3.60 mm).
The 1586044-4 mates with a VAL-U-LOK dual-row receptacle housing (such as the 1586010 series) that accepts the matching crimp terminals. The locking ramp on the header engages the latch on the receptacle for a vibration-resistant connection.
Yes, the header includes a locking ramp on the shroud that engages the mating receptacle latch, providing positive retention under vibration.
