0.250-inch pitch triple-row header for power distribution
The 1586176-1: The 0.250" (6.35mm) pitch and 12A per circuit rating at 600VAC place it firmly in the power interconnect category — not a signal-density part.

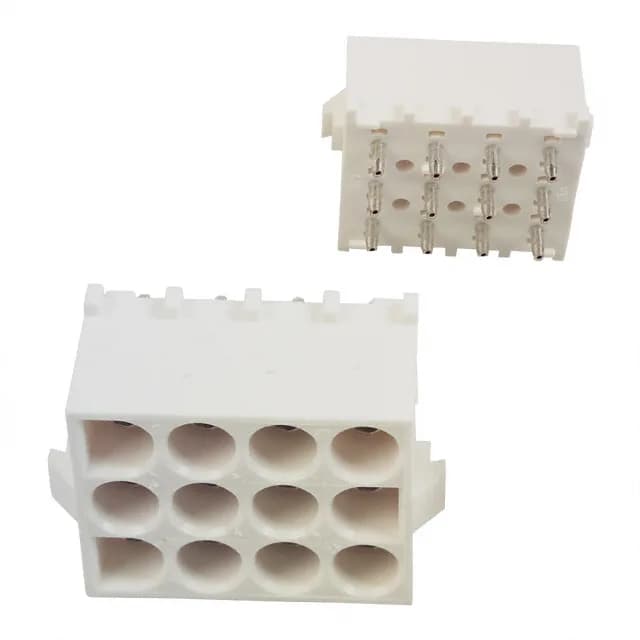

1586176-1 TE Connectivity Universal MATE-N-LOK Header 12
MPN1586176-1
Active
TE Connectivity AMP Connectors, Universal MATE-N-LOK series, 1586176-1, Board to Cable/Wire header, 12-position triple-row male pin, 0.250" (6.35mm) pitch, shrouded 4-wall, locking ramp, through-hole solder, 12A per circuit at 600VAC, tin-on-mating and tin-on-post phosphor bronze contacts, white nylon insulation, UL94 V-0, -40°C to 105°C operating range.
$2.5500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 12A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | White |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.250\" (6.35mm) |
| Positions | 12 |
| Row spacing - mating | 0.250\" (6.35mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.155\" (3.94mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What housing mates with 1586176-1?
The 1586176-1 header mates with Universal MATE-N-LOK receptacle housings that have the matching locking ramp and 0.250" (6.35mm) pitch. The mating half is a female housing with crimp terminals — confirm the position count (12 positions, triple-row) and the locking ramp feature on the receptacle side.
