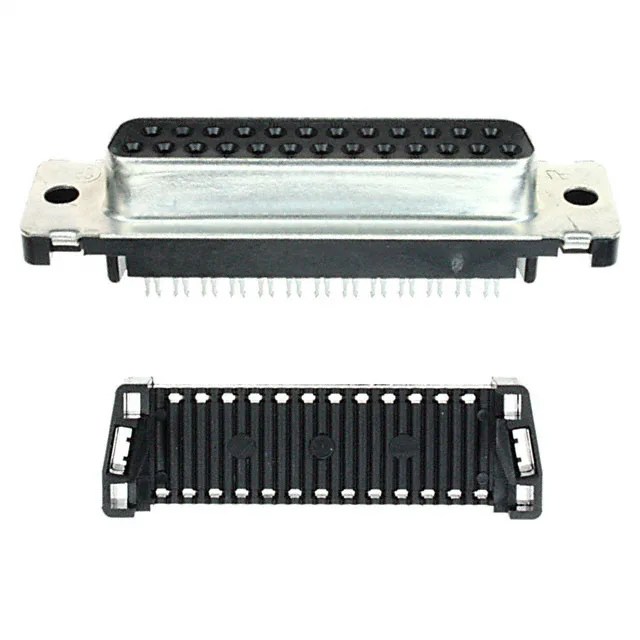

TE Connectivity AMP Connectors 1658612-2
MPN1658612-2
Active
CONN D-SUB RCPT 25POS IDC
$12.86Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPLIMITE HDF-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDF-20 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Current rating | 1.25A |
| Wire gauge | 26-28 AWG, Stranded or Solid |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Feed Through |
| Termination | IDC, Ribbon Cable |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | 30.0µin (0.76µm) |
