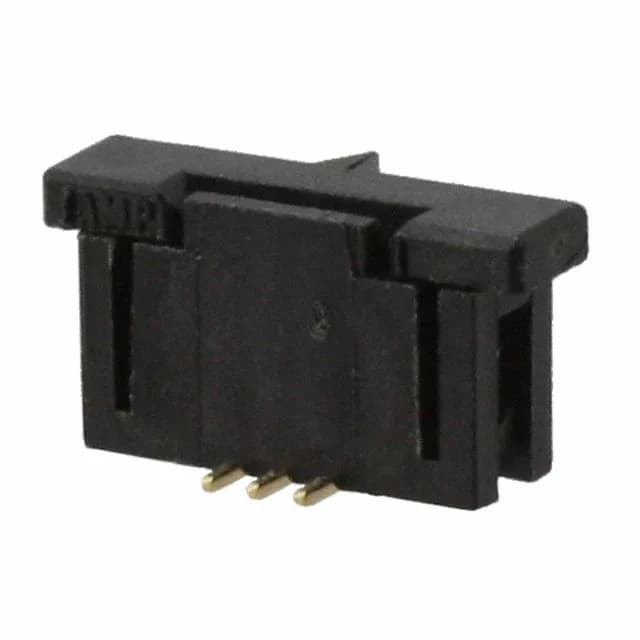

TE Connectivity AMP Connectors 1734248-3, FPC vertical SMD connector, 0.039" (1.00mm) pitch, 3 positions, ZIF slide lock, gold flash contacts, 1 A, 125 V, UL94 V-0
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA9T), Nylon 9T |
| Actuator material | Polyamide (PA9T), Nylon 9T |
| Parameter | Value |
|---|---|
| Height above board | 0.217\" (5.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 3 |
| Contact finish thickness | Flash |
The 3-position variant shares the same 5.50 mm height above board and 1.00 mm pitch as the 5-position (1734248-5) and 9-position (1734248-9) siblings; the footprint scales by position count only.
0.039" (1.00 mm) pitch.
Yes, ROHS3 compliant.
