Board-fit and routing for a 1.00 mm pitch SMT header

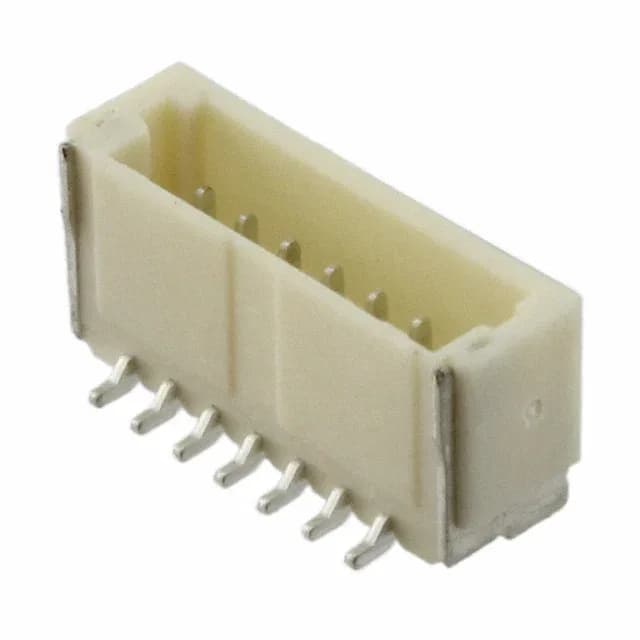

The 1734595-7 is a single-row, 7-position shrouded header on a 1.00 mm pitch, designed for board-to-cable/wire interconnect in space-constrained assemblies. Surface-mount termination with pick-and-place and solder retention features suits automated reflow assembly — the 4-wall shroud protects the male pins during handling and guides the mating receptacle.
Sourcing and lifecycle status
Sourced per RFQ — confirm current pricing and lead time at quote.
What mates with this header
This shrouded header accepts a matching 1.00 mm pitch receptacle housing with crimp terminals. The 4-wall shroud provides polarization and keying to prevent mis-mating.
