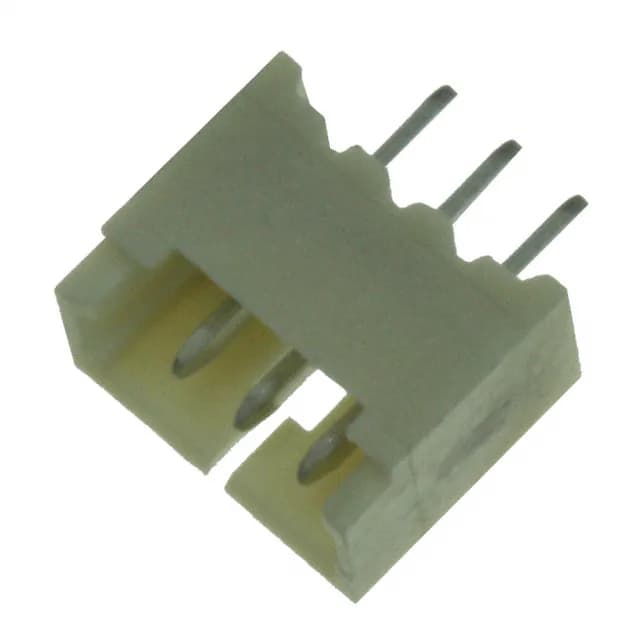

TE Connectivity AMP Connectors 1734598-3, High Performance Interconnect (HPI) series, Board to Cable/Wire header, 3 positions, 1.25 mm pitch, shrouded 4-wall, through hole, tin contacts, 1 A, 100 VAC, UL94 V-0, natural.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 100VAC |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.185\" (4.70mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.067\" (1.70mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
The square pin profile (phosphor bronze base) provides a reliable gas-tight connection with the mating receptacle.
ROHS3 compliant.
Key difference: the 1-2232960-3 uses a 2.50 mm pitch (double the 1.25 mm of the 1734598-3) and a locking ramp fastening type, rated 2 A at 50 VAC. The 1734598-3 is the finer-pitch, lower-current option for space-constrained designs.
1734598-3 is an active TE Connectivity part. No stock-holding claim; availability confirmed at quote.
0.049" (1.25 mm) pitch, single row, 3 positions loaded.
Yes, ROHS3 compliant.
