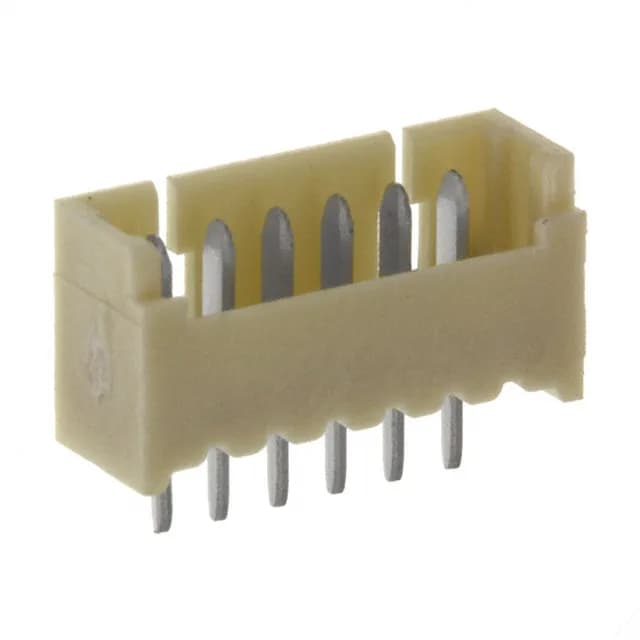

TE Connectivity AMP Connectors HPI series, 1734598-6, Board to Cable/Wire header, 6 positions, 1.25 mm pitch, shrouded 4-wall, through-hole solder, tin-plated male pins, 1 A, 100 VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 100VAC |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.185\" (4.70mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.067\" (1.70mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
The 0.049" (1.25 mm) pitch sets a tight footprint on the PCB, routing dense signal traces between the header and the rest of the circuit.
The header terminates via through-hole solder, with a contact post length of 0.067" (1.70 mm) — a short tail that suits standard PCB thicknesses.
The datasheet for 1734598-6 is available from TE Connectivity's product documentation portal. The base product number is 1734598, and the full order code is 1734598-6. The page carries the key ratings: 6 positions, 1.25 mm pitch, shrouded header, 1 A, 100 VAC, tin plating, UL94 V-0.
The 1734598-6 is a male pin header from the HPI series, designed to mate with a corresponding HPI series receptacle housing and crimp terminals. The mating half is a board-to-cable/wire receptacle — the exact order code depends on the wire count and keying. Confirm the mating part number against the HPI series product drawings to ensure fit.
