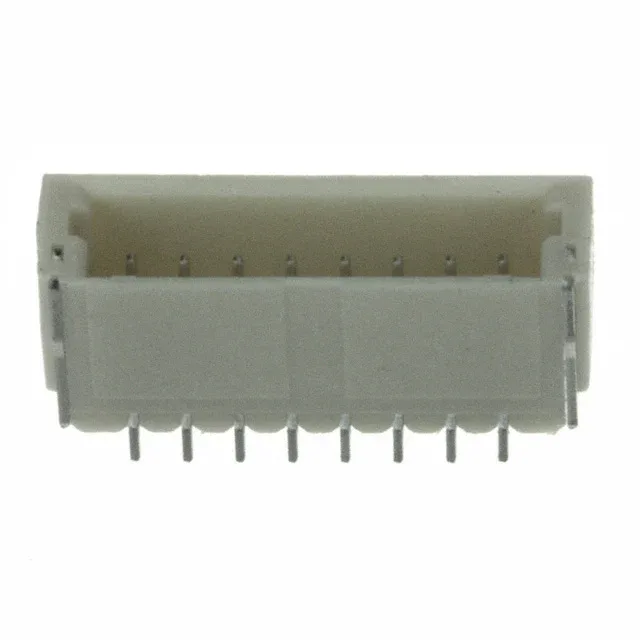

TE Connectivity AMP Connectors HPI series, 1734709-8, Board to Cable/Wire, Shrouded - 4 Wall, 8 Positions, 1.00mm Pitch, Surface Mount Right Angle, Solder Termination, 1A, 50V, Tin Contacts, UL94 V-0, -55°C ~ 105°C
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.114\" (2.90mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 120.0µin (3.05µm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
The 120.0 µ in tin plating provides a durable wear surface for repeated connect-disconnect cycles.
Mates with any 1.00 mm pitch, 8-position, shrouded receptacle from the HPI series — confirm the receptacle's keying and latch style match the header's 4-wall shroud. Termination is solder-only; the SMT tails are tin-plated and designed for reflow soldering. The 8 positions are fully loaded — no unpopulated pins to manage.
Yes. The 1.00 mm mating pitch is designed for 1.00 mm pitch cable receptacles. The 4-wall shroud aligns the plug and protects the pins — confirm the receptacle's keying matches the header's shroud profile.
