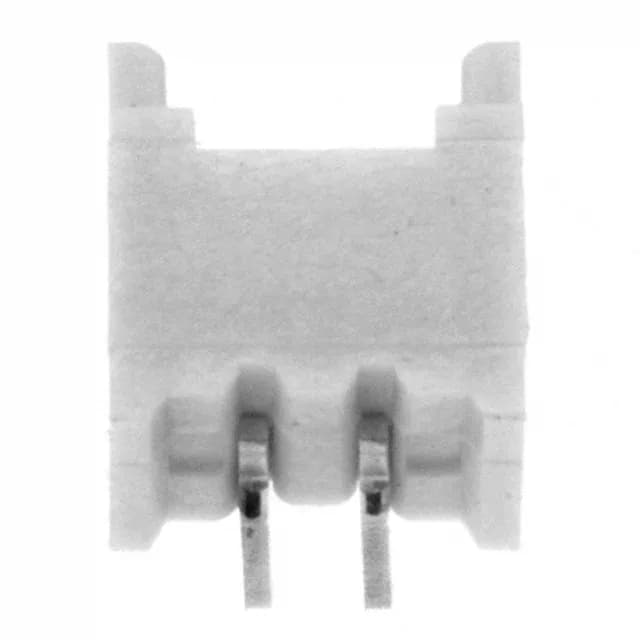

TE Connectivity AMP Connectors High Performance Interconnect (HPI) header, order code 1734829-2, 2 positions, single row, 1.25 mm pitch, 1 A, 125 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -25°C~85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.126\" (3.20mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.091\" (2.30mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 1734829-2 is the 2-position member of TE's High Performance Interconnect (HPI) shrouded header line, configured as a board-to-cable/wire interface.
The header mounts through-hole, right-angle, with a 0.091" (2.30 mm) post length for solder termination. Operating temperature spans -25°C to 85°C, which covers most automotive and industrial interior environments without derating the 1 A current limit.
The mating pitch is 0.049" (1.25 mm).
The 1 A, 125 V rating and -25°C to 85°C range suit interior automotive and industrial control environments.
